Creaxio EVS-D EV Charging Station
More intelligent EV charging system

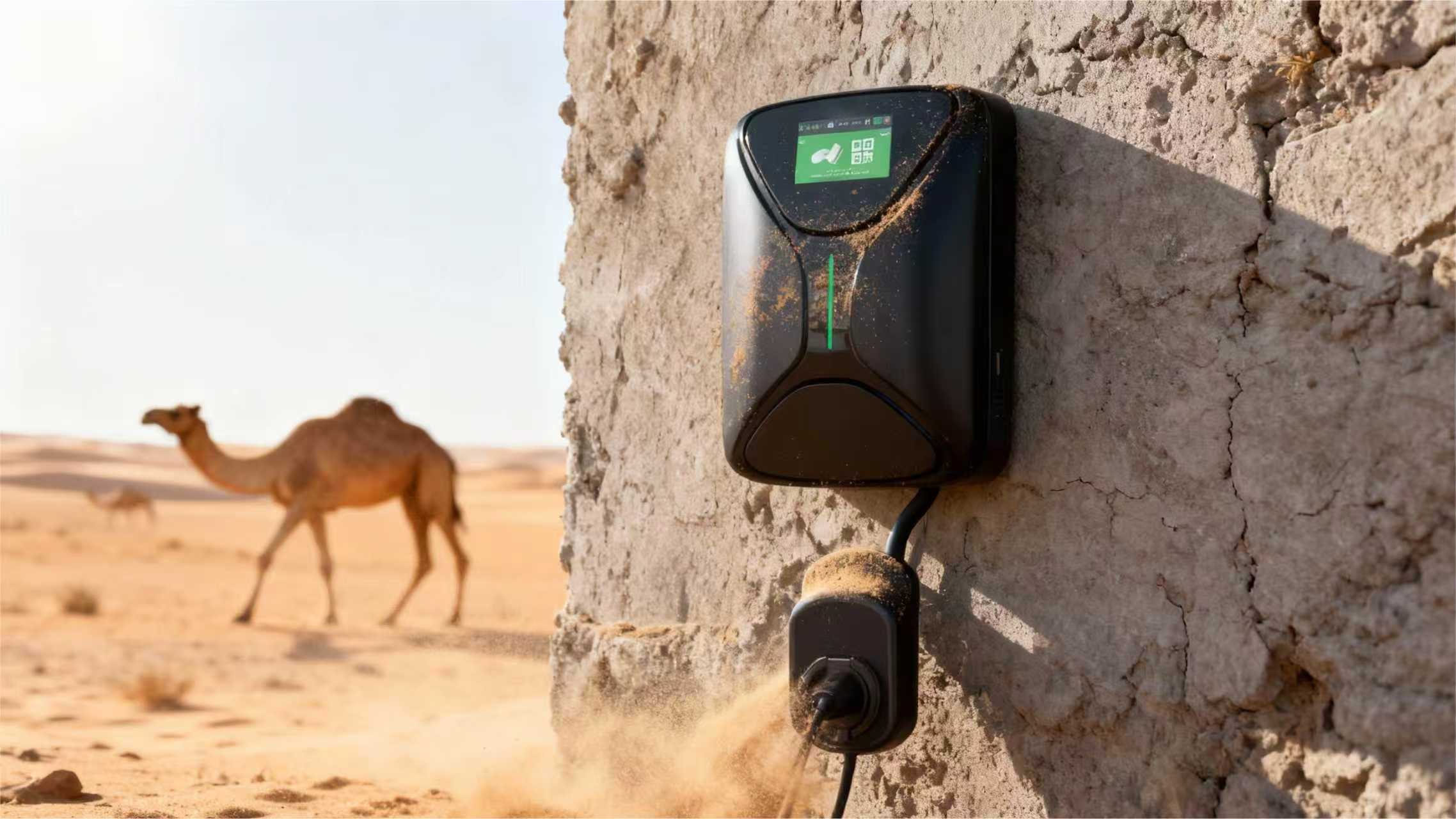

EV charging stations offer reliable, certified charging solutions for electric vehicles, with power options from 3.6kW to 22kW. Designed for both residential and commercial use, these stations are built to perform in any environment, whether indoors or outdoors. Its advanced connectivity features allow for remote monitoring and control through APP, ensuring you stay connected and in control of your charging sessions.

Whether used for daily home charging, semi-public facilities, or high-demand commercial applications, the Creaxio ECW-D ensures a fast and secure charging experience. With advanced smart features and proven long-term durability, the BS20 EV charger remains a top choice for those seeking versatility, safety, and efficiency in electric vehicle charging.

EV Charging Power

3.6kW / 7.2kW / 11KW / 22kW
Function

RFID / App Control
RCD Type

Type A / Type A+6mA D
Version

Tethered cable / Socket

Mounting Option

Wall-mounted / Pole-mounted
Certification

CE / Rohs
Warranty

2 Years
OEM / ODM

Available

Parameter Of Creaxio EVS-D EV Charging Stations

Electric properties

Charging capacity

3.6kW / 7.2kW / 11kW /22 kW

Input plug

Schuko, CEE, UK, AU, NZ and etc

Output port

Type 1/2 plug or Socket

Charging Mode

Rfid Mode or App Mode

Residential current protection

30mA AC or 30mA AC+6mA DC

Maximum output

3-phase, 32A

Length of Iutput plug

1M or customized

Cable Length

5M or customized

Connectivity

Bluetooth/Wifi

Electrical Protection

Under Voltage Protection / Over Load Protection / Short Circuit Protection / Earth Leakage Protection / Over-temp Protection / Lightning Protection

Physical Properties

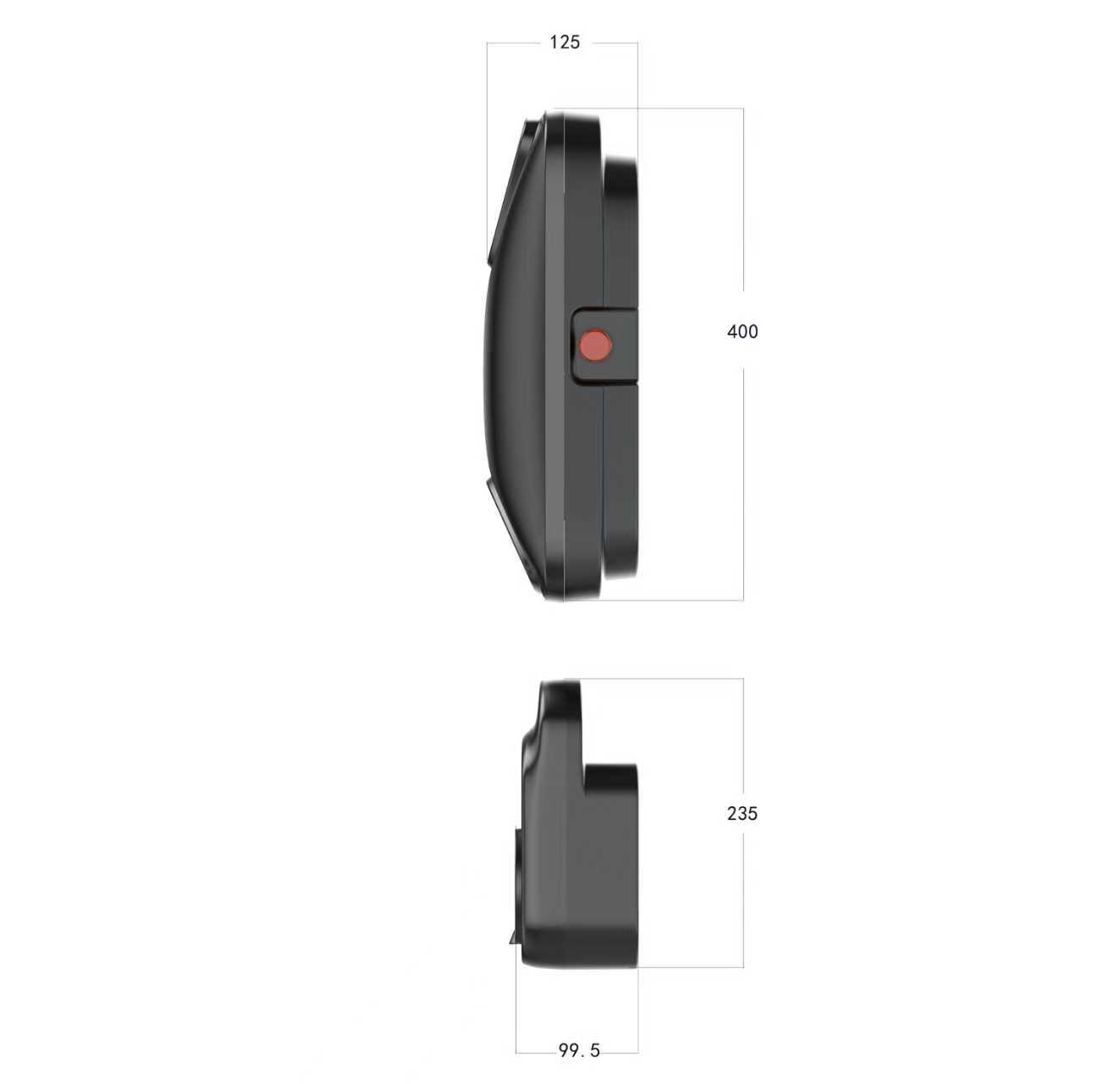

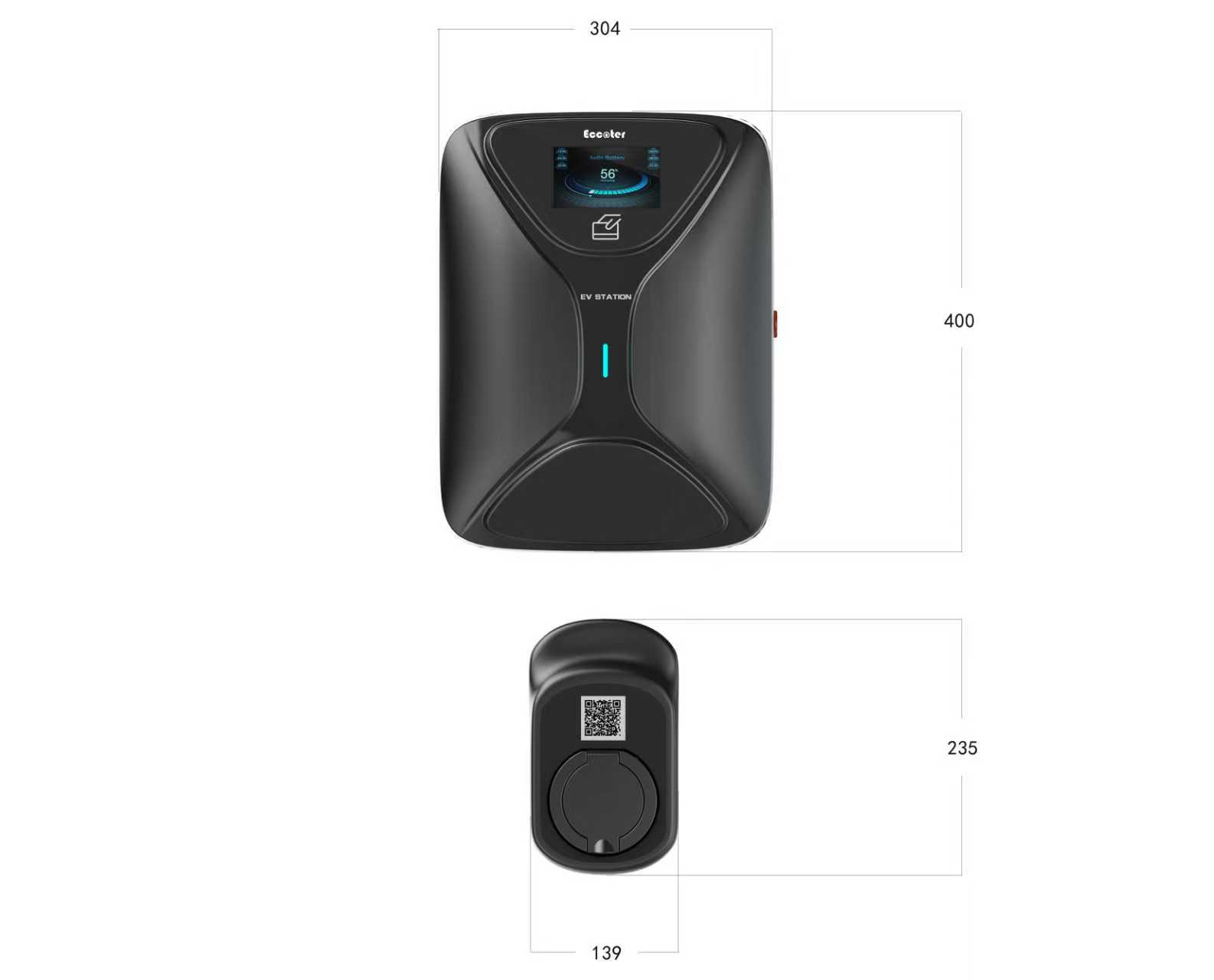

Dimension

400*304*125mm

Altitude

≤2000m

Colors

Black

Enclosure material

PC V0

Operating Temperature

-30 ̊C to +60 ̊C

Installation

Wall mounted or Ground mounted

Functions

Current Ajustable

Available on App Mode

Dynamic Load Management

Available on App Mode

Delay Charging

Available on App Mode

Safety and Certification

Certification

CE / RoHS

Warranty

2 Years

Enclosure rating

IP55 on housing

GET A QUOTE

Features On Creaxio EVS-D Home EVSE Charging Station

Comprehensive Safety Protections

The home station is equipped with advanced safety protections to guarantee secure and reliable operation in every environment. It includes overcurrent, overvoltage, undervoltage, short circuit, leakage, and overheating protection, along with surge and lightning resistance.

Emergency Stop Button

The emergency stop button ensures maximum safety during EV charging. With a single press, users can instantly cut off power in case of faults, overheating, or unexpected hazards. This feature provides quick response protection, giving EV owners peace of mind and reliable safety for both home and commercial charging stations.

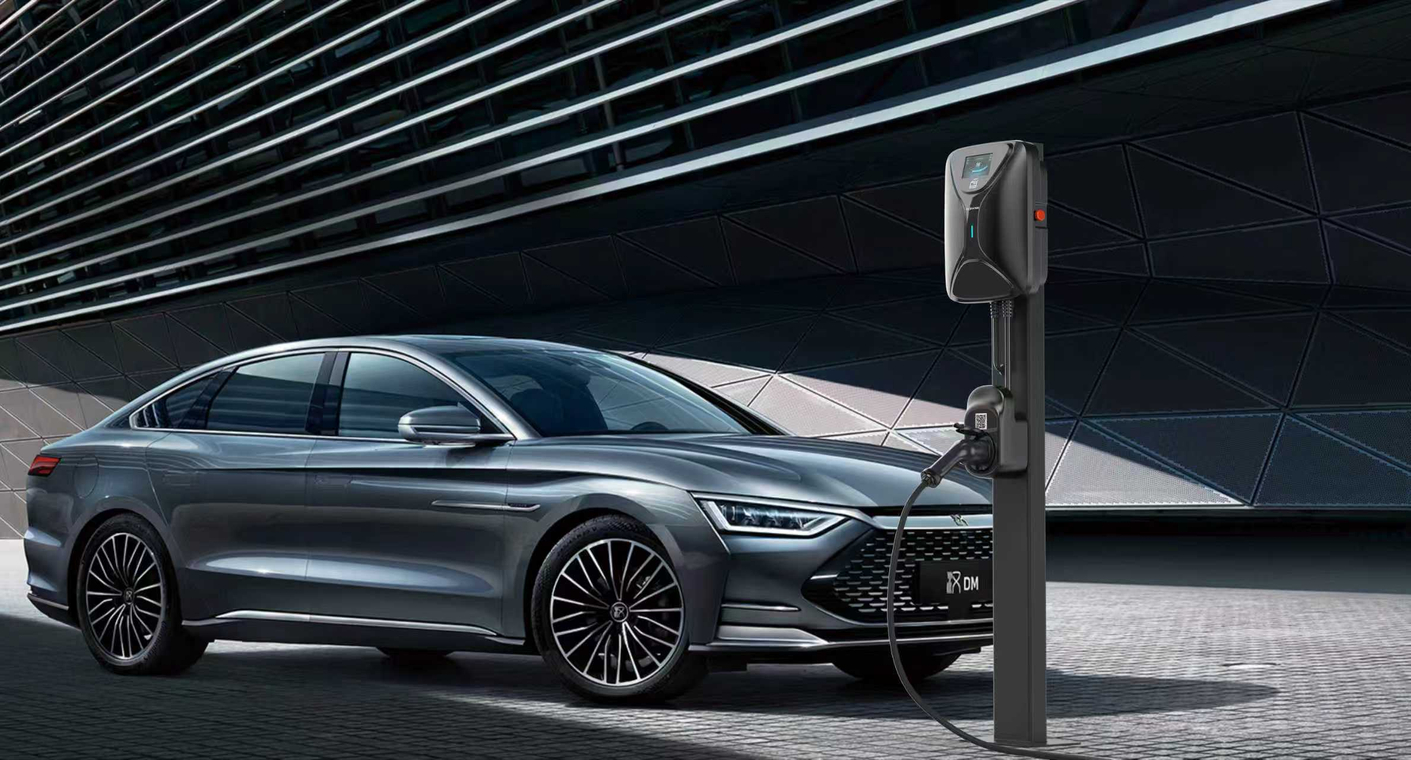

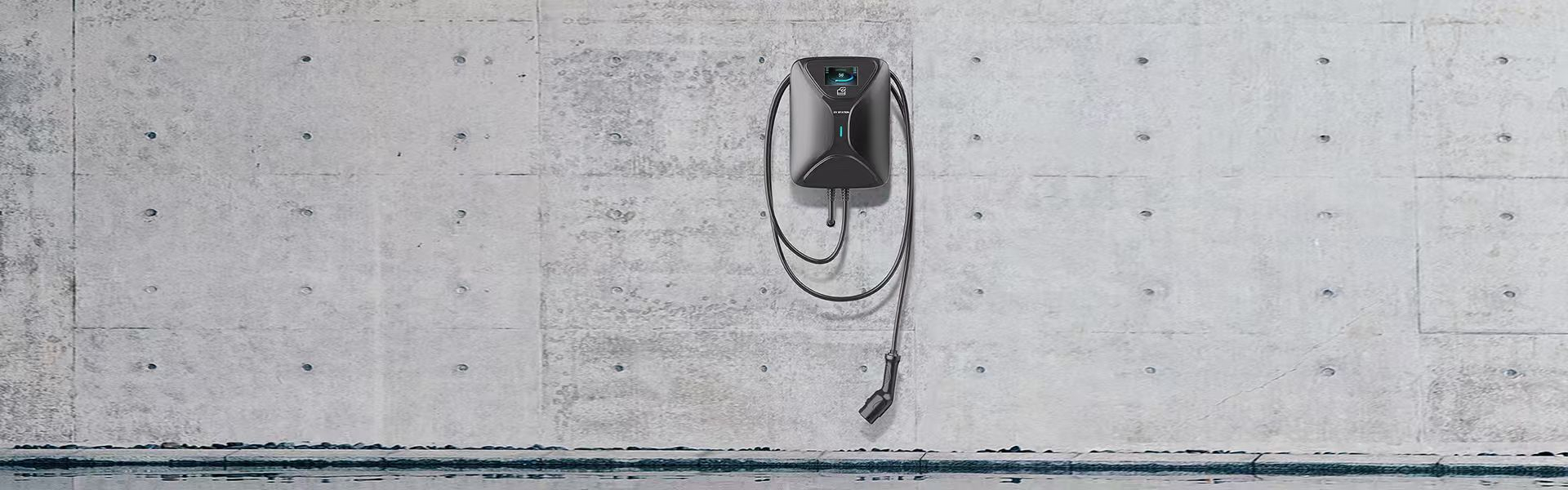

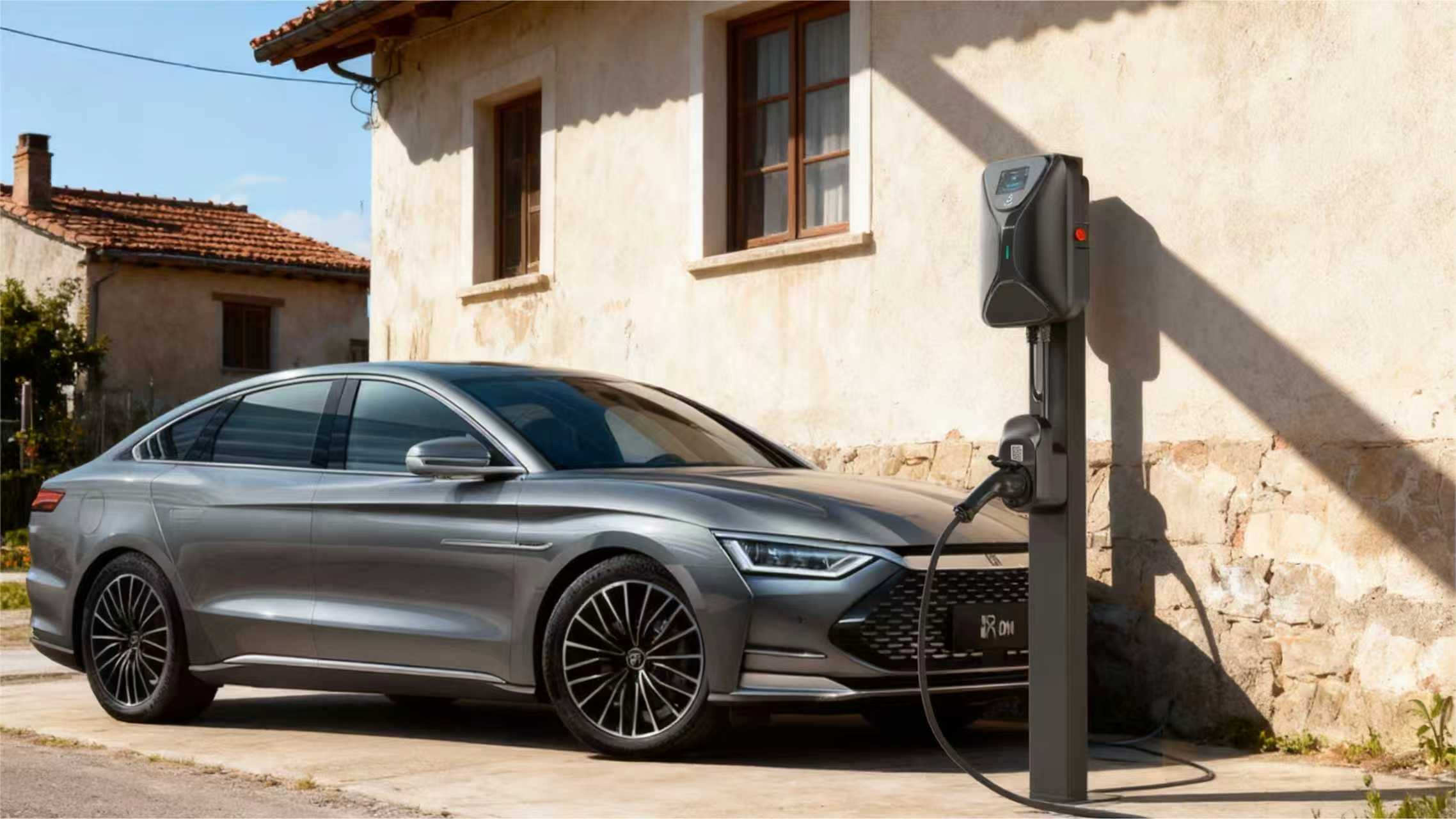

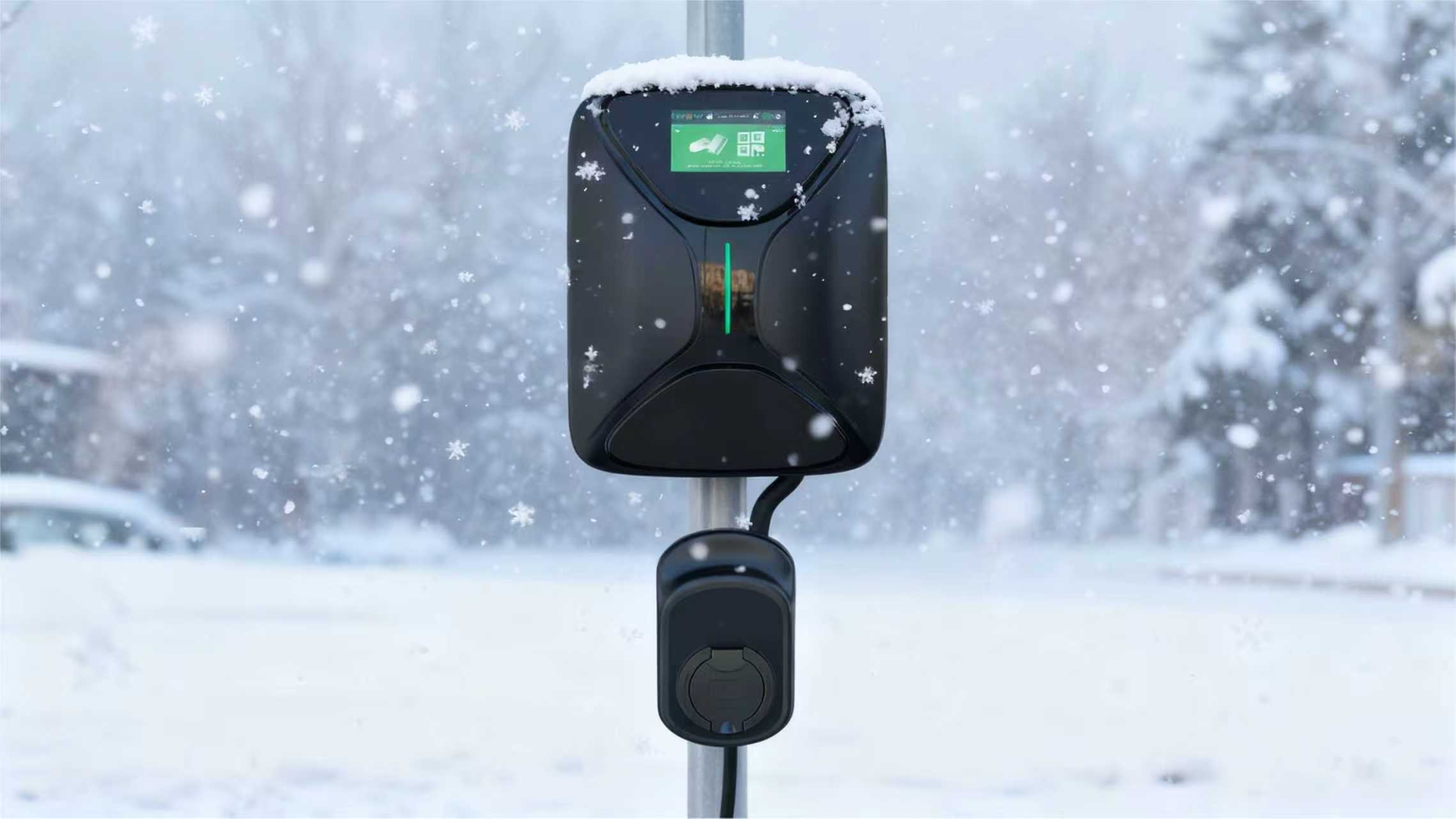

Wall or Pole Mounting

The home vehicle charging station offers flexible installation options, supporting both wall-mounted and pole-mounted setups. This versatility makes it ideal for homes, workplaces, semi-public, and public environments.

Compatibility Of Creaxio EVS-D E Charging Station

Type 1

The Type 1 EV plug is a single-phase connector commonly used in North America and Japan.

Type 2

The Type 2 EV plug, widely adopted across Europe, supports both single-phase and three-phase charging.

GBT

The GB/T standard is China’s primary EV charging solution, delivering safe, high-efficiency charging for domestic electric vehicles.

Charging Method On Creaxio EVS-D EV Charger Station

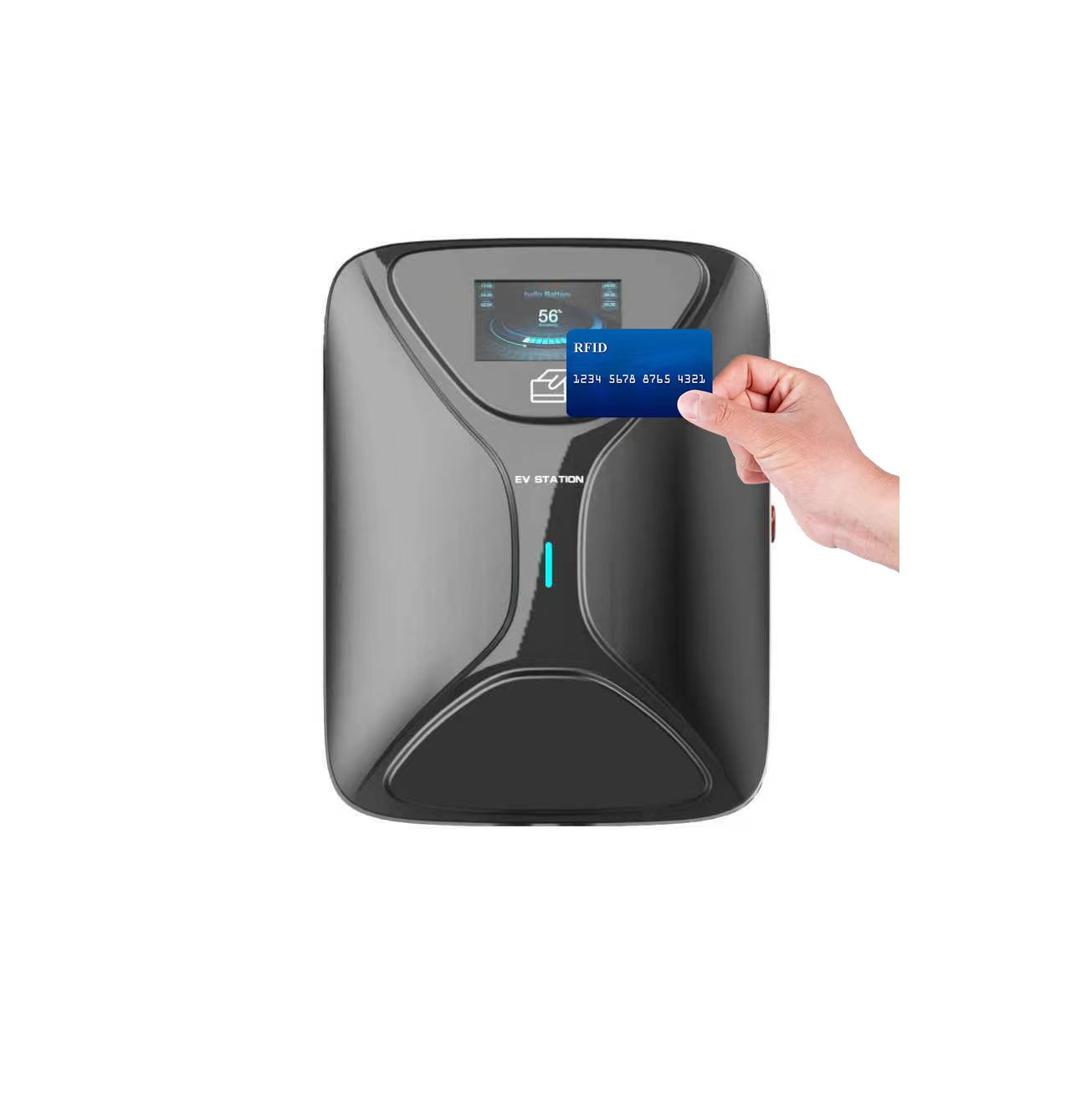

RFID Version

RFID-enabled EV charging allows users to access and activate charging stations instantly with a secure contactless card. This technology ensures quick authentication, personalized access control, and enhanced safety, making it ideal for private, commercial, and shared EV charging locations.

It also simplifies station management, allowing operators to monitor usage while providing a hassle-free and convenient charging experience for authorized users.

App Control Version

Smart app-controlled EV charging lets drivers manage their charging sessions from anywhere using a mobile device. With features such as remote start/stop, charging schedules, current adjustment, usage monitoring, and energy cost management, the app delivers a highly flexible, efficient, and user-friendly charging experience.

It also supports multi-user sharing, dynamic load balancing, and real-time notifications, making it a perfect solution for homeowners, workplaces, and public charging stations seeking modern, intelligent EV charging solutions.

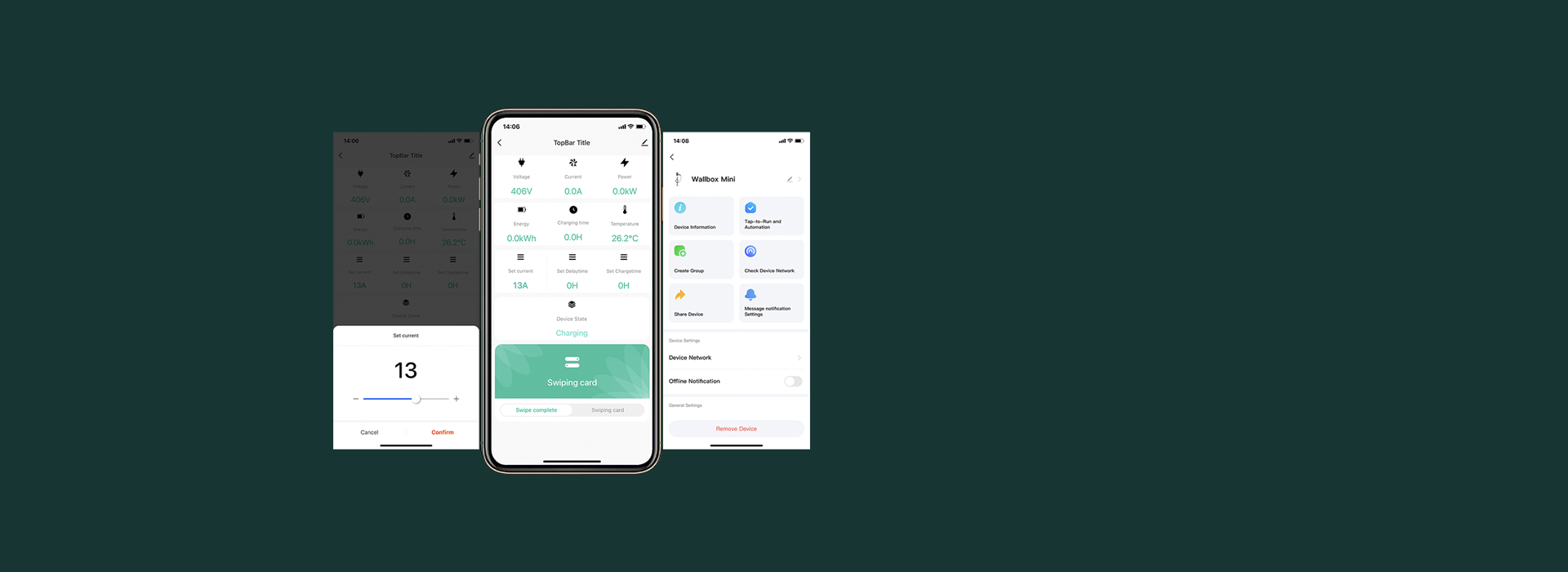

App

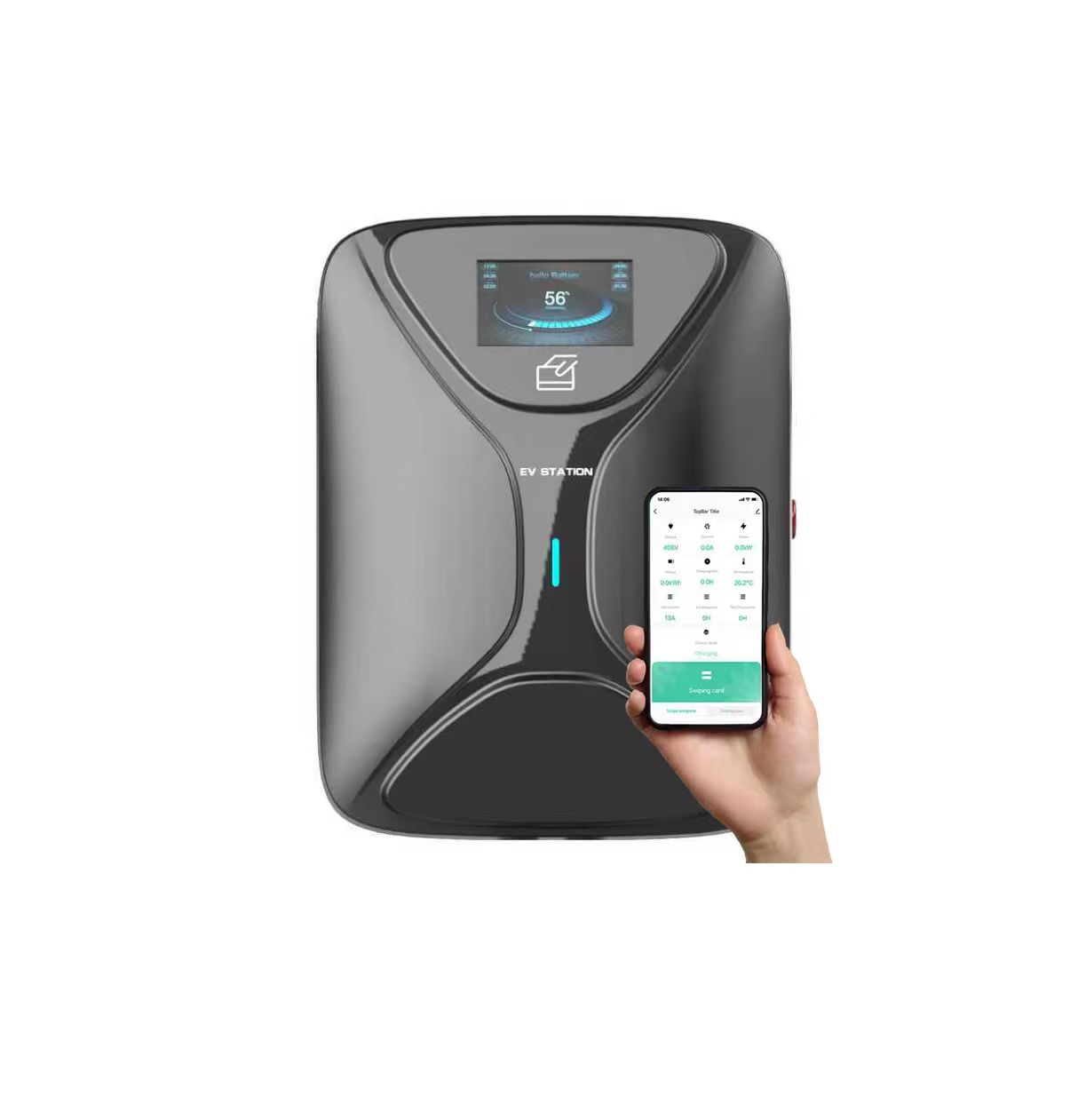

The home EV station comes with a dedicated mobile app that allows users to remotely monitor, manage, and control their charging sessions.

Through the app, drivers can start or stop charging, adjust current settings, schedule charging times, and delay sessions for optimal energy usage.

App On Creaxio EVS-D EV Power Station

Real-Time Charging Alerts

Receive instant notifications when your EV starts or stops charging, or if a fault occurs. This feature ensures timely updates, improved safety, and better energy management, even when you’re away from the charger.

Energy Optimization

The app analyzes your vehicle’s battery status and local electricity rates to recommend optimal charging times and power levels, helping reduce electricity costs while maintaining battery health.

Usage Reports

Track detailed charging history and energy consumption over time. Users can monitor patterns, efficiency, and costs, which helps in budgeting and managing energy use for home or commercial stations.

Multi-Station Control

Control multiple EV chargers from a single app interface, making it ideal for businesses, apartment complexes, or fleet operators. This feature allows centralized management and efficient monitoring of all stations.

Remote Updates

The app provides over-the-air software updates for your charging stations. This ensures the system is always up-to-date with the latest features, security patches, and performance enhancements.

Family Sharing

Easily grant access to family members, guests, or employees with personalized permissions. This feature allows secure, controlled, and convenient sharing of home electric charging stations without compromising safety.

Downloads On Creaxio EVS-D EV Battery Station

EVS-D.pdf
EVS-D Manual.pdf

Get A Quote

Why Choose Creaxio EVS-D EVSE Station

The EVS-D is a cost-effective, reliable, and versatile EV charging station from the 2021 model lineup, designed to meet the diverse needs of residential, commercial, and public charging environments. Built for efficiency and convenience, the EVS-D delivers fast, safe, and adaptable charging solutions for all types of electric vehicles.

Available Versions:

Basic: A simple plug-and-play solution for straightforward EV charging.
App Control: Enables smart monitoring and management through a dedicated mobile app.
RFID Card Access: Provides secure user authentication for semi-public and public installations.

Key Features Across All Versions:

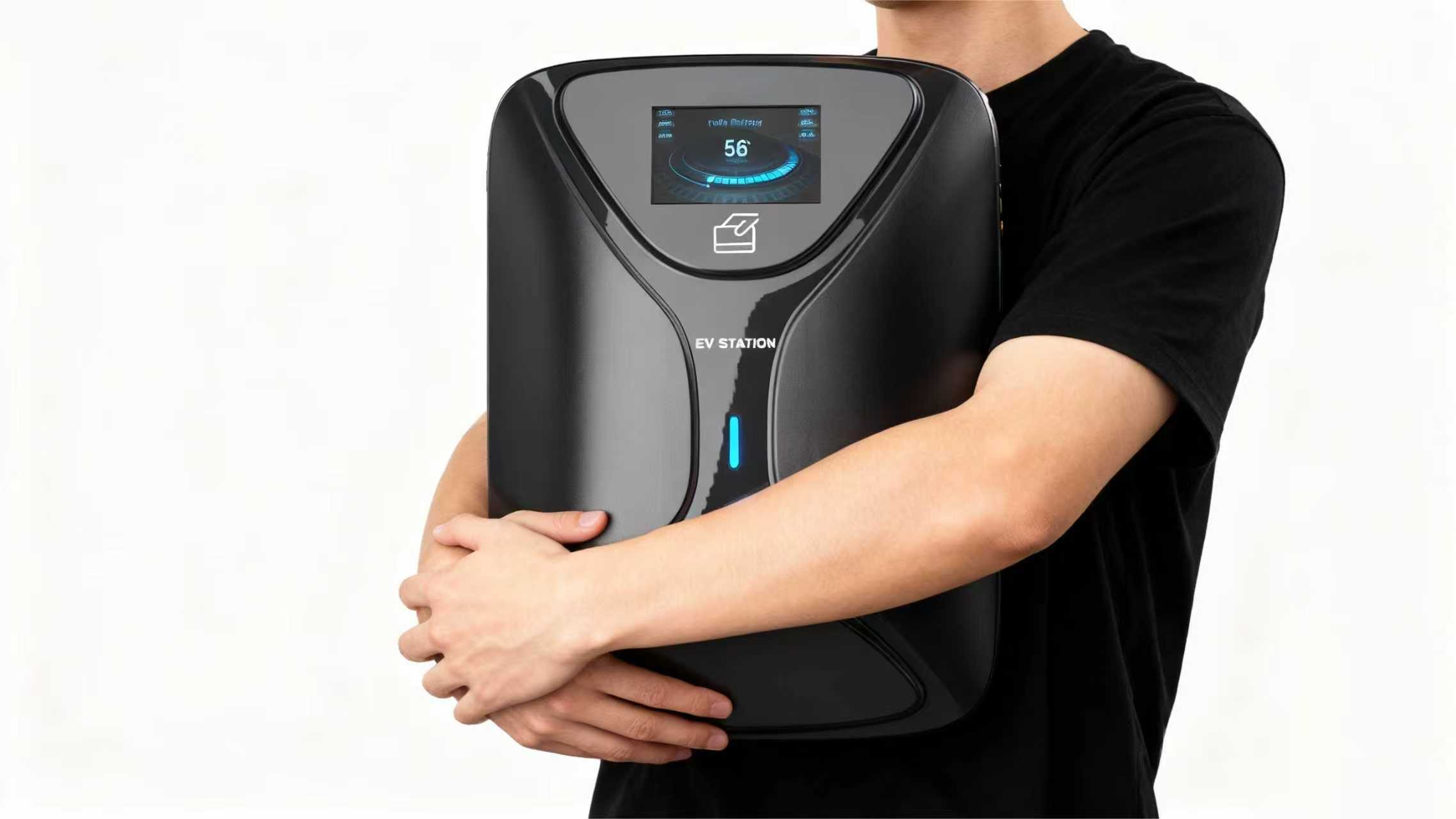

Lightweight & Compact: Weighing only 3.5kg, the EVS-D is easy to handle and install.
LED Status Indicators: Visual cues for idle, connected, charging, completed, and error states.
Fault Code Diagnostics: Quickly identify issues with specific fault codes for efficient troubleshooting.
Type 2 Outlet Compatibility: Works with the standard Type 2 connector for broad EV compatibility.
Multi-Cable Support: Compatible with Type 2 to Type 2, Type 2 to Type 1, and Type 2 to GB/T cables.

Why Choose EVS-D?
The EVS-D EV charger stands out for its efficiency, affordability, and flexible installation options, supporting both wall-mounted and pole-mounted setups. Safety is a priority, with advanced protection mechanisms and international certifications ensuring reliable operation. Optional features like app control and RFID access offer enhanced user convenience, energy management, and access control, making the EVS-D a future-proof solution for all EV owners. Whether for home use, workplace charging, or public charging stations, the EVS-D combines performance, reliability, and adaptability, providing a smart, safe, and efficient EV charging experience.

Overview On Creaxio EVS-D Electric Car Charger Station

Partner with Creaxio EVS-D EV Charging Station

More than 10 precision production line, easy to realize large quantities of goods, to provide you with the best price. Have an excellent after-sales service team to ensure that the first time to solve customer after-sales problems.
