Creaxio M2C-20 EV Charging Stations
Reliable Electric vehicle Mini charging wallbox

The ECW-20 EV charging stations offers a reliable, certified charging solutions for electric vehicles, with power options 3.6kW/7.2kW/11kW/22kW. This electric vehicle charging station is tailored for those who seek a compact and efficient solution. Its small footprint saves valuable space, making it ideal for homes or locations where space is at a premium.

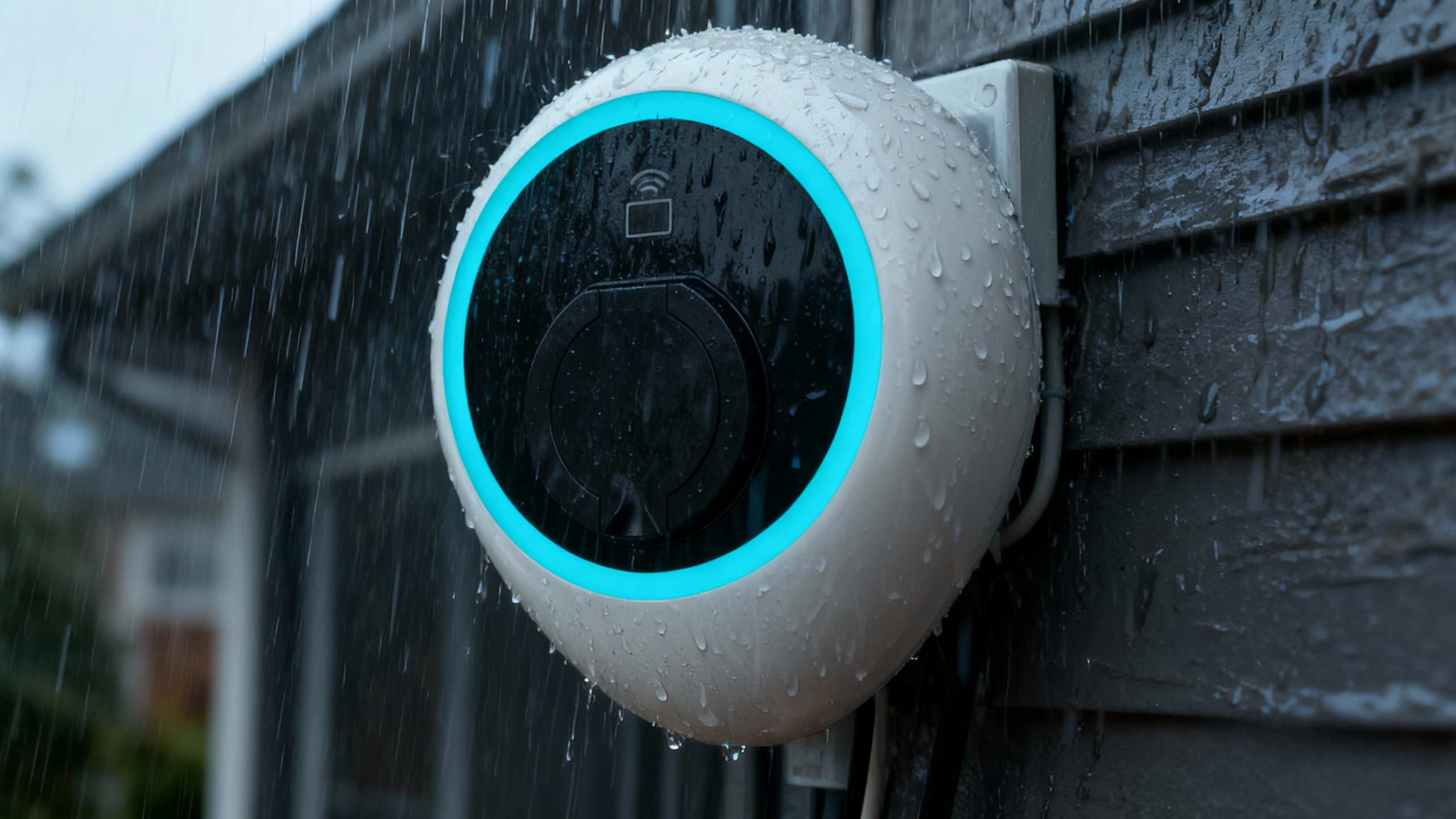

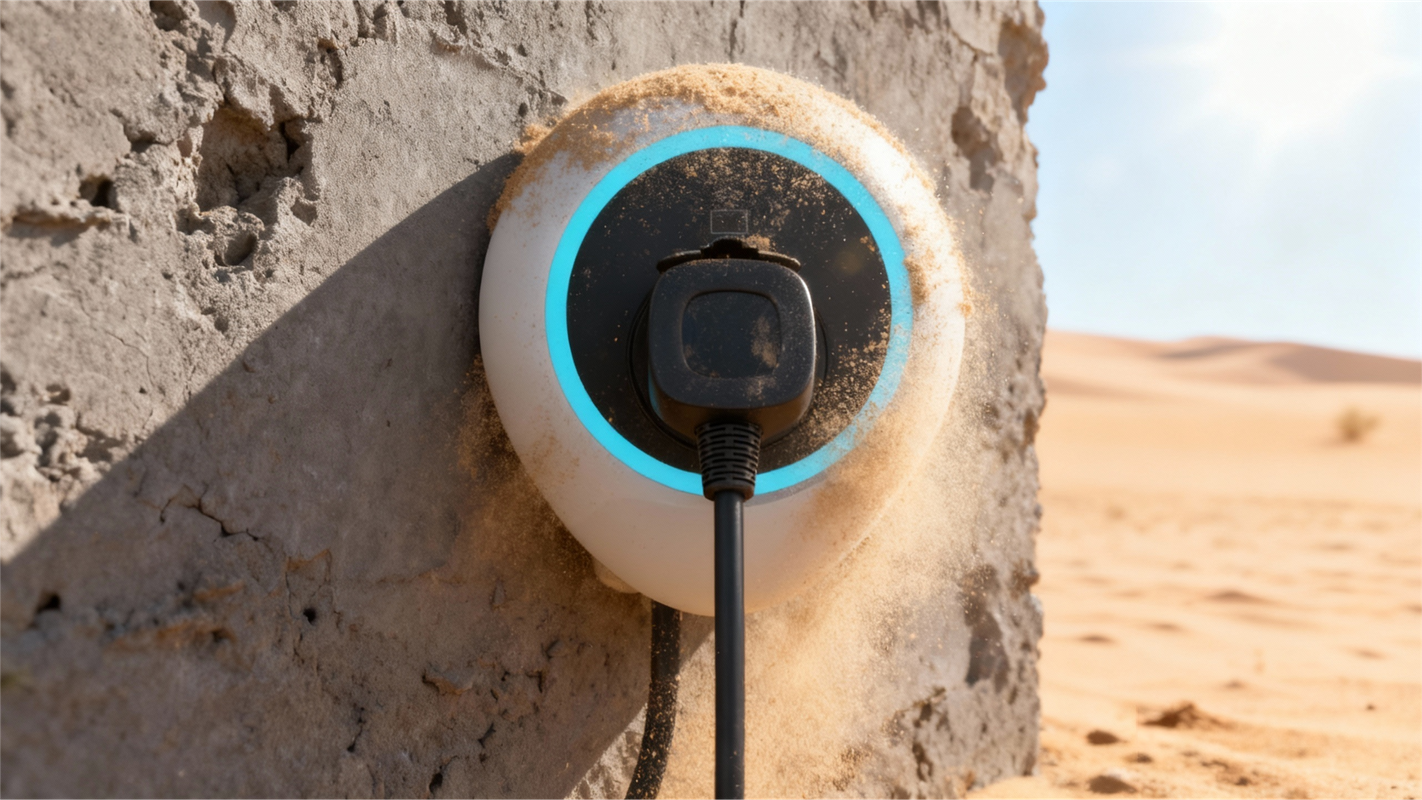

This EVSE charging wallbox offers universal compatibility, supporting a wide range of electric vehicles and charging standards with various protection inside, including Type A RCD or Type B RCD(30mA AC + 6mA DC) protection, preventing electrical risks. With IP55 waterproofing and IK10 impact resistance, it is built to last in any environment.

EV Charging Power

3.6kW / 7.2kW / 11kW / 22kW
Function

RFID / App Control
RCD Type

Type A / Type A+6mA D
Version

Tethered / Socket

Mounting Option

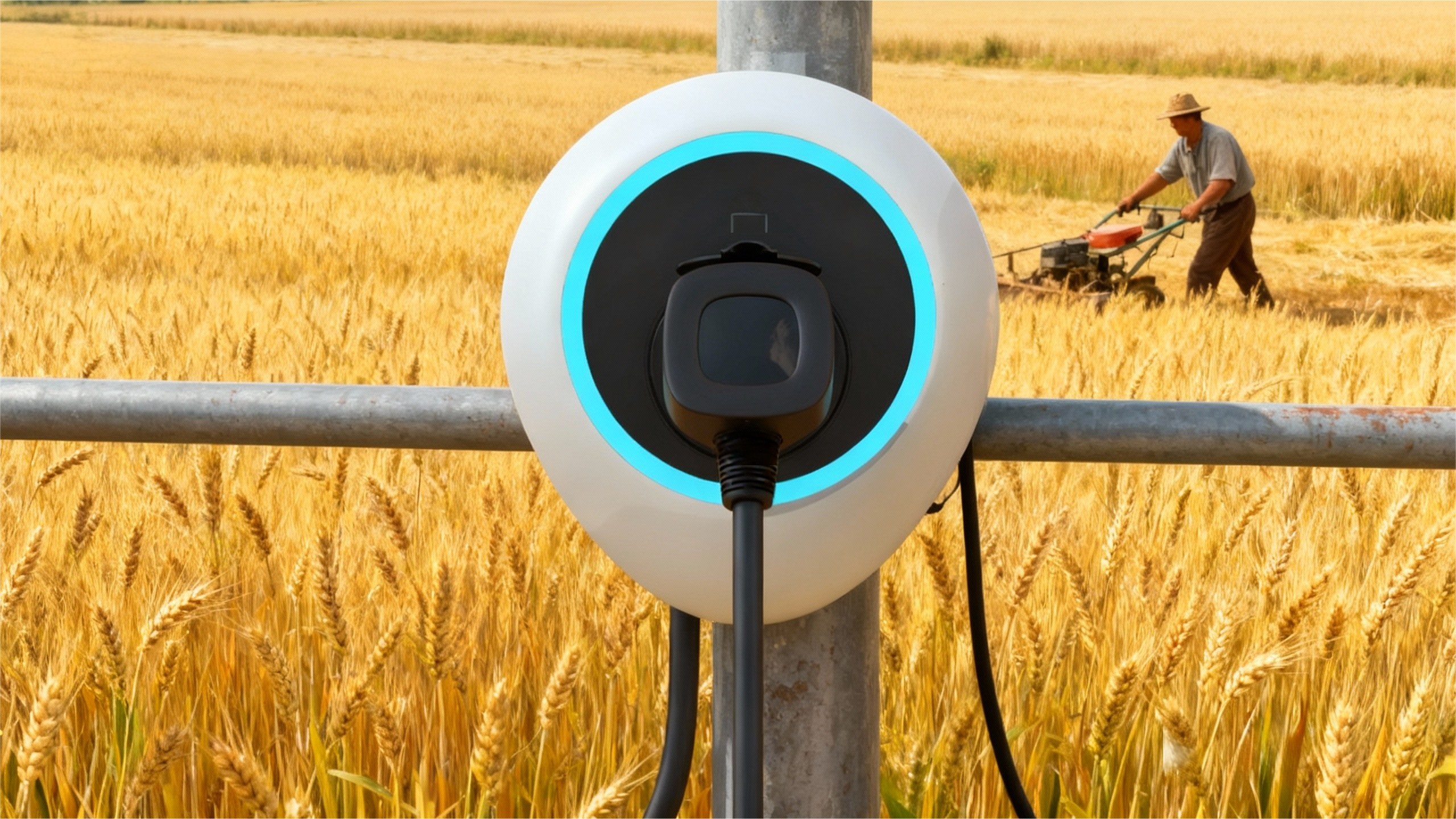

Wall-mounted / Pole-mounted
Certification

CE / Rohs
Warranty

2 Years
OEM / ODM

Available

Creaxio ECW-20 EV Station Parameter

Electric properties

Charging capacity

3.6kW/ 7.2kW/ 11kW/ 22 kW

Input plug

Schuko, CEE, UK, AU, NZ and etc

Output port

Type 1/2 plug or Socket

Charging Mode

Rfid Mode or App Mode

Residential current protection

30mA AC or 30mA AC+6mA DC

Maximum output

3-phase, 32A

Length of Iutput plug

1M or customized

Cable Length

5M or customized

Connectivity

Bluetooth/Wifi

Electrical Protection

Under Voltage Protection / Over Load Protection / Short Circuit Protection / Earth Leakage Protection / Over-temp Protection / Lightning Protection

Physical Properties

Dimension

275*148*120mm

Altitude

≤2000m

Colors

Black / Metal Grey / Red / White / Blue

Enclosure material

PC V0

Operating Temperature

-30 ̊C to +60 ̊C

Installation

Wall mounted or Ground mounted

Functions

Current Ajustable

Available on App Mode

Dynamic Load Management

Available on App Mode

Delay Charging

Available on App Mode

Delay Charging

Available on App Mode

Safety and Certification

Certification

CE / RoHS

Protection

IK10

Enclosure rating

IP55 on housing

Warranty

2 Years

GET A QUOTE

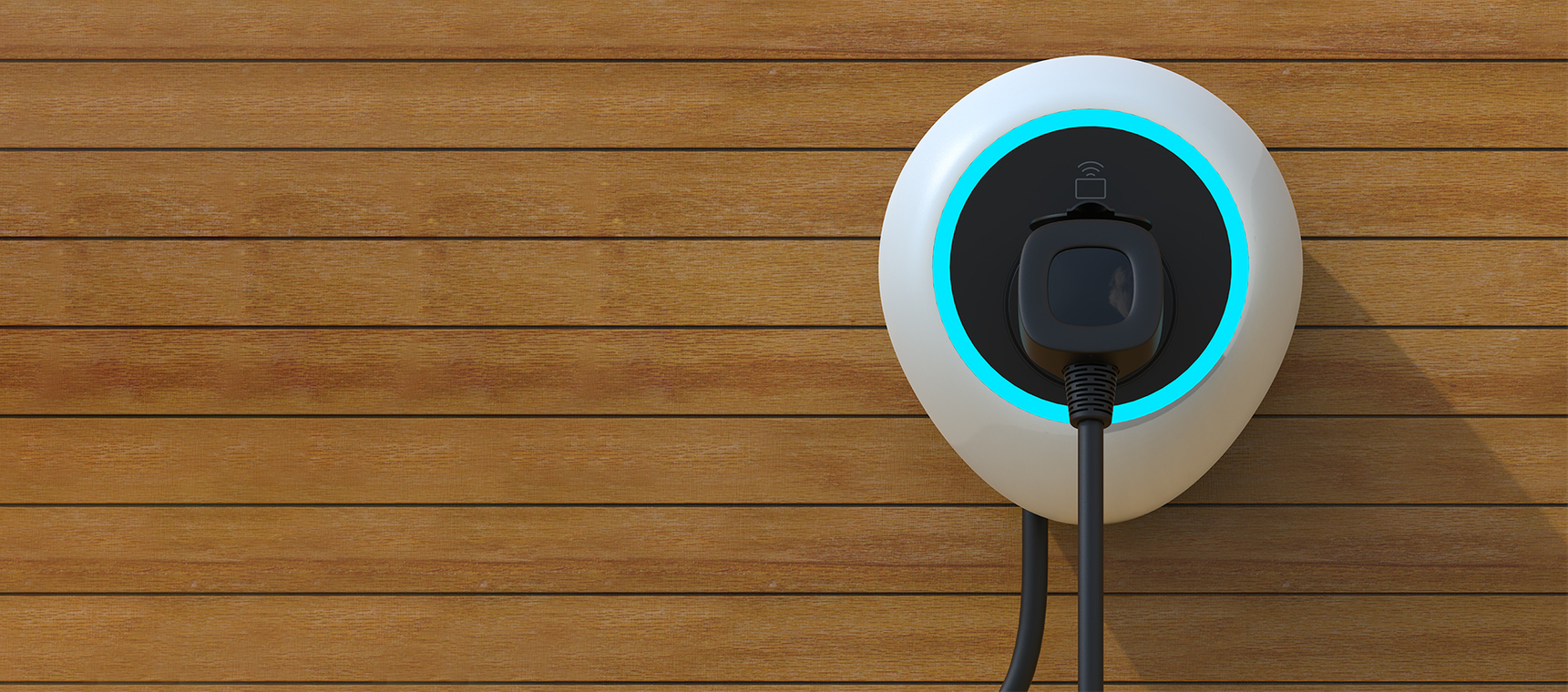

Models Of Creaxio ECW-20 EV Wallbox mini

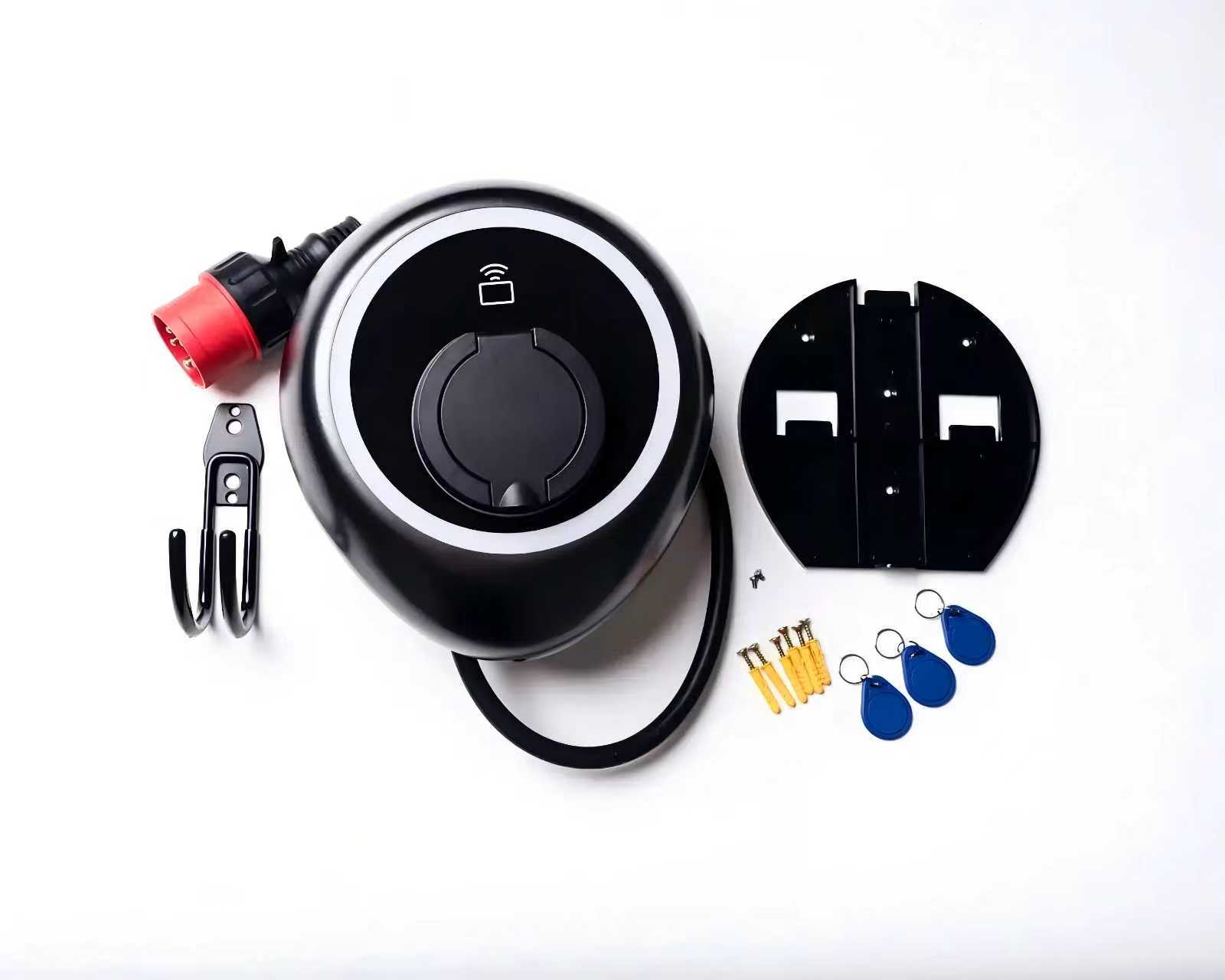

Socket Charging Model

A socket version car charging station with a Type 2 socket (Mode 3 charger) is a versatile home EV charger solution in Europe. Drivers use their own Type 2 cable, ensuring broad compatibility. Perfect for residential and public charging, socket wallboxes are cost-effective, reliable, and future-proof for all electric vehicle owners.

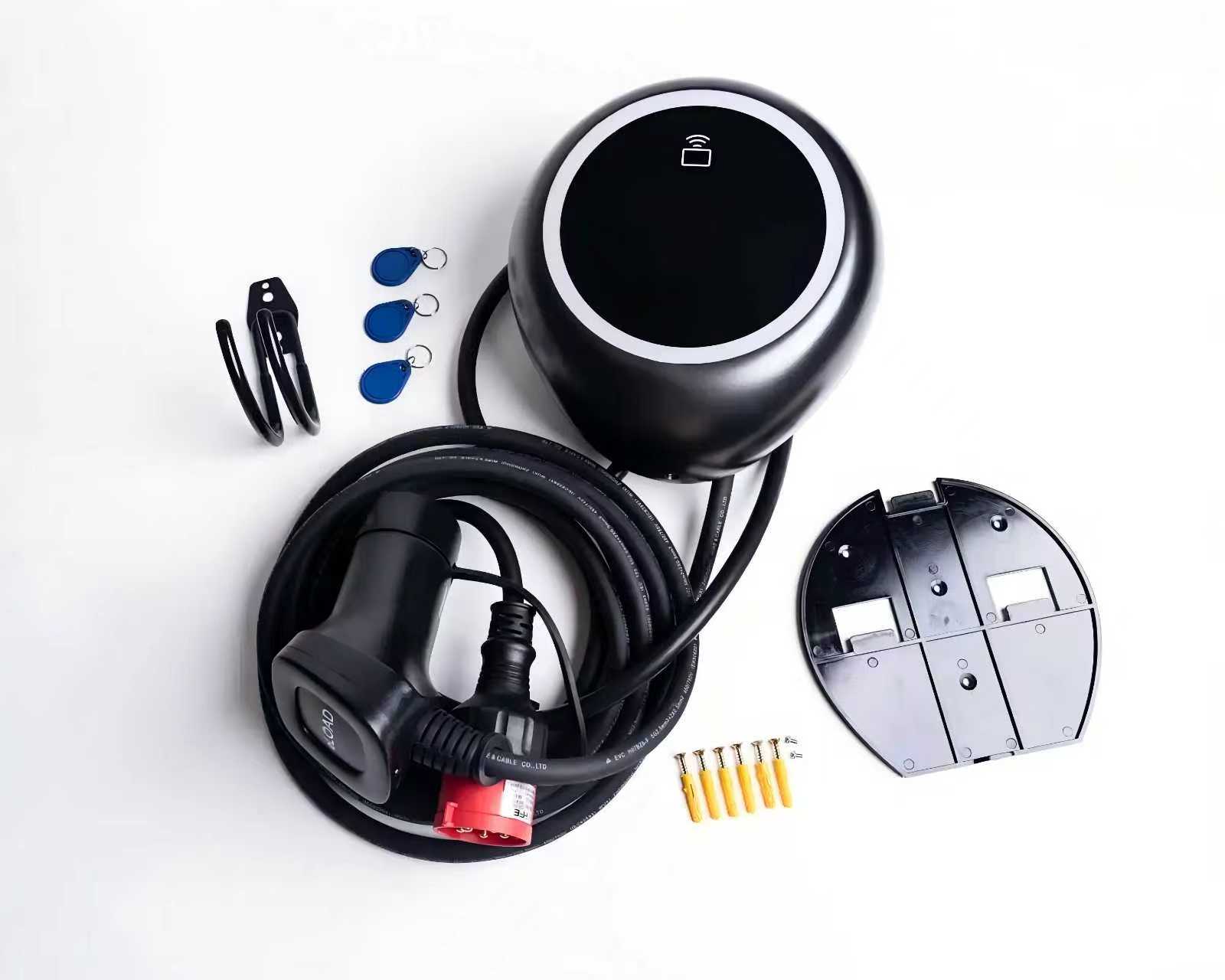

Tethered Cable Charging Model

A tethered EV fast charging station with a fixed Type 2 /Type 1/ GBT cable (Mode 3 charger) offers ultimate convenience for home EV charging. Just plug in without carrying extra cables. Designed for residential and workplace installations, tethered wallboxes save time, reduce connector wear, and ensure reliable, high-quality charging for all electric vehicles.

Compatible With Creaxio ECW-20 EV Charging Wallbox

Type 1

Type 1 EV charging uses a 5-pin single-phase connector, common in North America and Asia.

Type 2

Type 2 charging is Europe’s standard connector, supporting single-phase and three-phase.

GBT

GB/T charging is China’s national EV standard for AC.

Creaxio ECW-20 EV Wallbox Charging Method

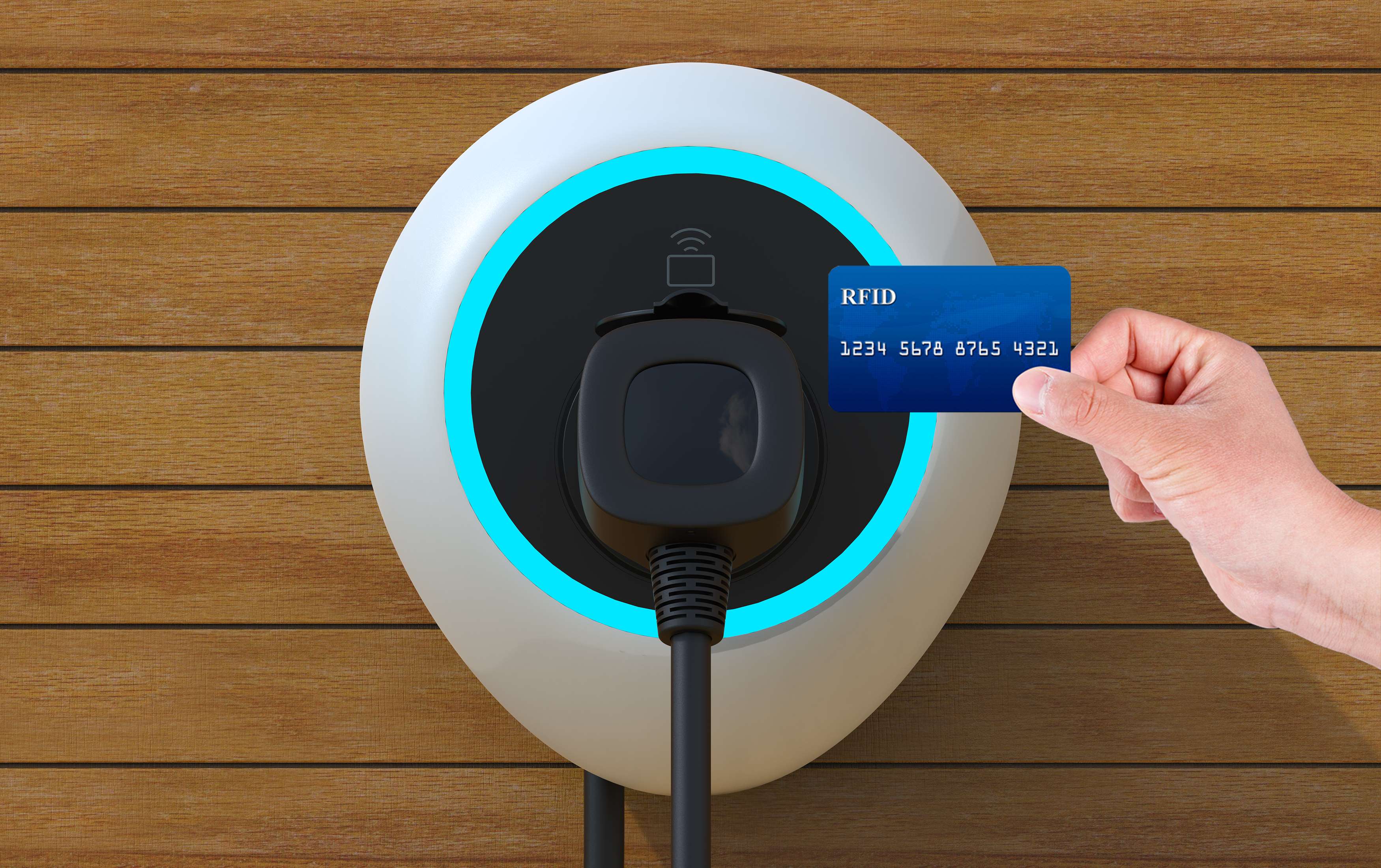

RFID Version

RFID charging allows EV drivers to start and stop charging sessions with a simple card tap. This model features RFID technology for secure user authentication, ideal for public or semi-public installations. It enables controlled access to the charging station, making it perfect for fleet management, commercial, or shared residential environments.

Best for: Public charging stations, corporate fleets, apartment complexes, or commercial buildings where user access needs to be managed.

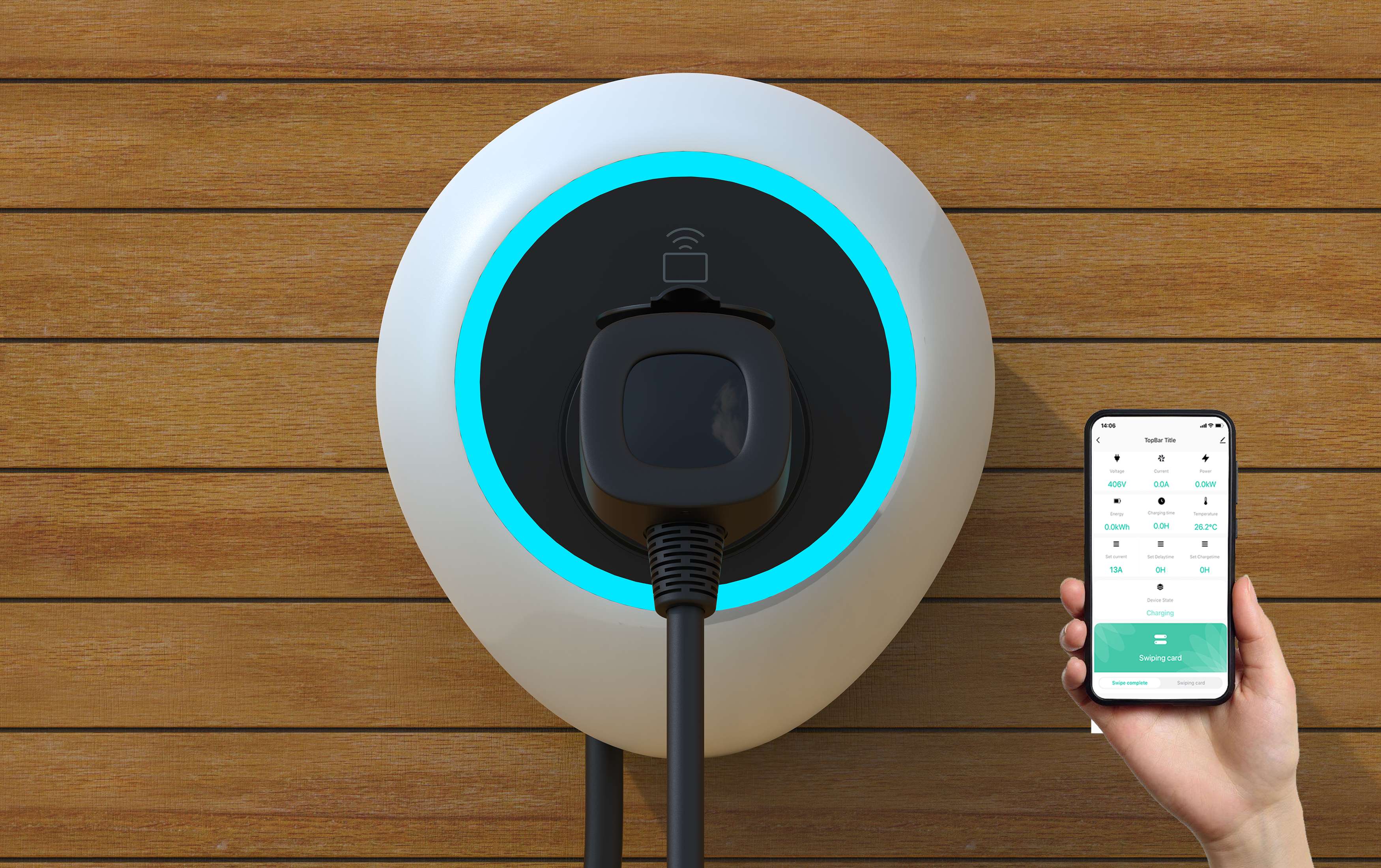

App Control Version

With built-in Bluetooth and wifi connectivity, this version enables remote control and monitoring via a smartphone app. Users can start, stop, and schedule charging, track their charging history, and receive real-time updates about their charging status."

Best for: Tech-oriented users, residential communities, or workplaces where remote management of the charging process adds convenience.

5min

Installation

time

Modular

components

32%

Improved

efficient

GET A QUOTE

Creaxio App

Bring your charging to the next level. Remote control your schedule, see insights and review your past sessions.

Creaxio ECW-20 EV Charging Station APP Overview

Adjust Current

With the current adjust function, EV drivers can easily set charging amperage via smartphone app, from 6A to 16A or 10A to 32A. This EV car charging station smart control optimizes charging speed, protects household circuits, and ensures safe, efficient home EV charging for all compatible vehicles.

Setting Delay Start

Schedule your electric fast charging easily with the delay start function, adjustable from 0h to 15h via smartphone app. Save on electricity costs, charge during off-peak hours, and enjoy flexible, convenient home EV charging.

Setting Delay Stop

Integrate your domestic EV charging station into your smart home setup with the delay stop feature. Set charging to stop between 0h and 15h, saving energy and enhancing convenience for modern home EV charging.

Start / Stop

The start/stop function allows instant control of EVSE charging through a mobile app. Pause or resume charging anytime, offering maximum flexibility and reliable home EV charging for modern electric vehicles.

Charging Statistic

Monitor your electric car charging performance with the app’s Charging Statistic feature. Track energy consumption, session duration, and efficiency in real time. Gain insights to optimize home EV charging, reduce costs, and manage your electric vehicle effectively.

Remote Update

Keep your electric vehicle up to date with the app’s Remote Update feature. Instantly receive the latest firmware and software improvements, ensuring safe, reliable, and optimized home EV charging without manual intervention.Users can schedule charging sessions in advance, enabling the EV to charge automatically at preferred times, such as during off-peak electricity hours. This feature helps reduce electricity costs, optimize energy usage, and ensures the vehicle is ready when needed.

Download Creaxio ECW-20 EV Car Station

ECW-20.pdf
ECW-20 Manual_update.pdf

Get A Quote

OEM/ODM Your Creaxio ECW-20 Electric Car Station

Why Choose Creaxio ECW-20 EVSE Station

The Creaxio ECW-20 EV Charging Station is a versatile and affordable EV charging station designed for both residential and commercial use.
Available Versions:

App Control: Smart monitoring and management via mobile app.
RFID Access: Secure public or semi-public installations with controlled user authentication.

Key Features:

Lightweight & Easy to Install;
LED Status Indicators for idle, charging, complete, and errors;
Fault Code Diagnostics for quick troubleshooting;
Type 2 Connector for broad EV compatibility;
Supports Multiple Cables: Type 2–Type 2, Type 2–Type 1, Type 2–GB/T.

Why Choose Creaxio?
With flexible wall or pole mounting, advanced safety protections, and customizable App and RFID features, the Creaxio ECW-20 EV station offers reliable, efficient, and future-proof EV charging for all users.

Creaxio ECW-20 EVSE Charging Wallbox Overview

Be a partner of Creaxio ECW-20 EV Station

The ECW-20 EV charging station is designed for the fast-growing electric vehicle market, combining reliability, safety, and advanced technology. By becoming an official agent in your region, you can join the clean energy revolution and build a profitable business in one of the world’s fastest-expanding industries. As an ECW-20 agent, you’ll gain access to Creaxio proven product line, professional technical support, and strong brand recognition—allowing you to offer your customers high-quality charging solutions while positioning yourself as a leader in sustainable mobility.
