Creaxio M2C-20 Portable EV Charger
Charming and future-proof EV charging solution

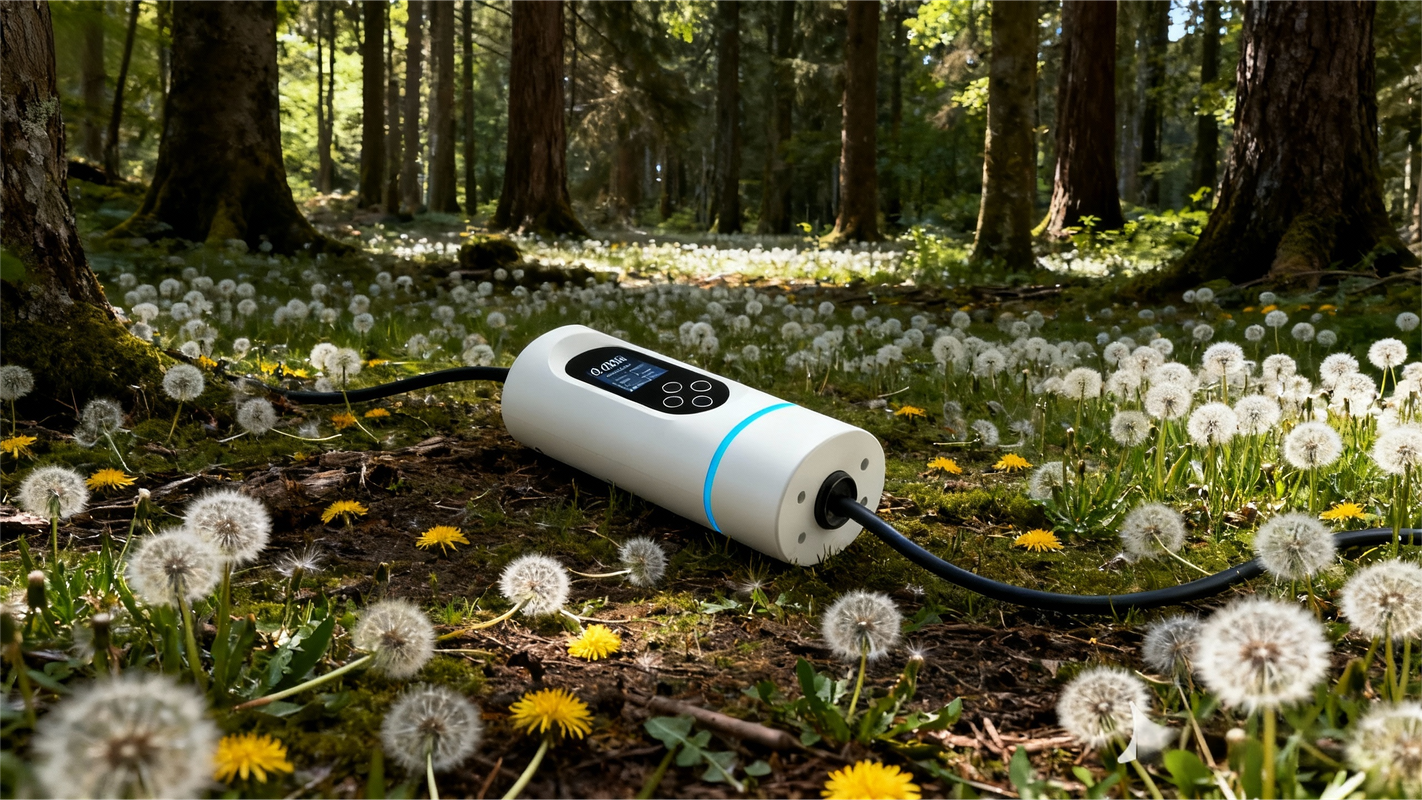

Creaxio M2C-20 electric car charger is engineered for maximum convenience, giving you the freedom to charge your electric vehicle anywhere, anytime. Equipped with fast-charging technology and intelligent compatibility, it delivers a quick, safe, and efficient charging experience for all EV models. Compact and reliable, this portable charger is the perfect solution for home, travel, or emergency use—ensuring you never face range anxiety or unexpected power shortages on the road.

Creaxio M2C-20 EV Home Charger delivers fast, reliable charging for electric vehicles worldwide. With maximum up to 22kW power output, CE certified safety compliance, and versatile plug options for North America and Europe, it’s the perfect solution for home, travel, or on-the-go EV charging. Compatible with all major EV models, this portable charger ensures efficient, safe, and convenient charging anytime, anywhere.

EV Charging Power

3.7kW / 7.4kW / 11kW / 22kW
2.4 Inch

Display
Functions

Current Adjust / Delay Charging
RCD Type

Type A / Type A+6mA DC

Power Plug

Schuko / CEE / NEMA / AU
Charging Plug

Type 1 / Type 2 / GBT
Certification

CE / Rohs
Warranty

2 Years

Parameter of Creaxio M2C-20 Level 2 Charger

Electric properties

Charging capacity

3.7kW / 7.2kW / 11kW /22 kW

Input plug

Schuko, CEE, UK, AU, NZ and etc

Output port

Type 1/2 plug or GBT

Residential current protection

30mA AC or 30mA AC+6mA DC

Maximum output

3-phase, 32A

Length of Iutput plug

0.5M or customized

Cable Length

5M or customized

Electrical Protection

Under Voltage Protection / Over Load Protection / Short Circuit Protection / Earth Leakage Protection / Over-temp Protection / Lightning Protection

Physical Properties

Dimension

252*96*73mm

Altitude

≤2000m

Colors

White

Enclosure material

PC V0

Operating Temperature

-30 ̊C to +60 ̊C

Installation

Wall mounted

Functions

Current Ajustable

6/8/10/13/16A on 16A Charger or 10/16/20/24/32A on 32A

Delay Stop

0H to 15H

Delay Start

0H to 15H

Safety and Certification

Certification

CE / RoHS

Warranty

2 Years

Enclosure rating

IP65 on housing

GET A QUOTE

Functions of Creaxio M2C-20 EV Car Charger

1

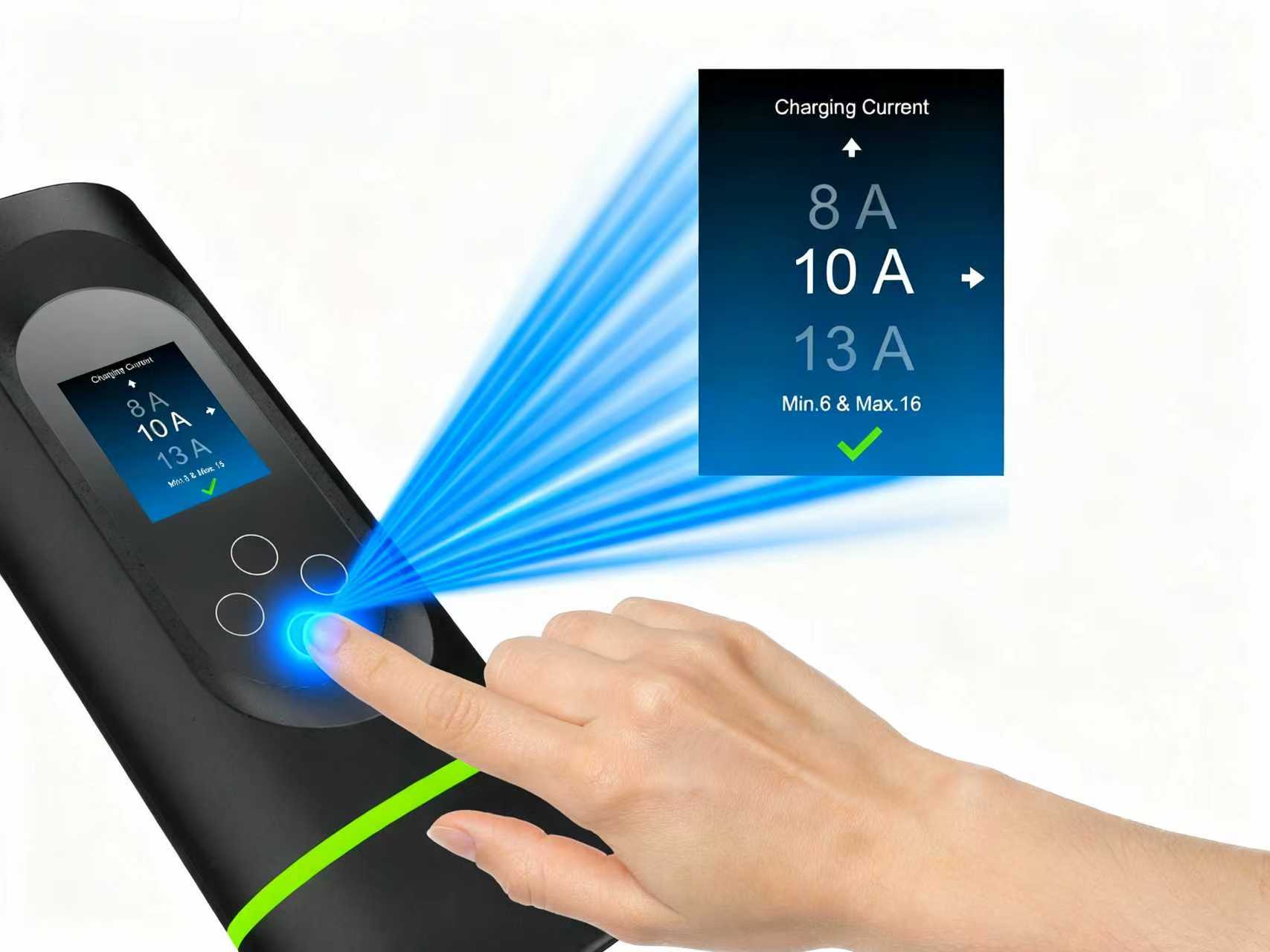

CURRENT ADJUSTABLE

Easily adjust your level 2 EV charger’s power with up to five selectable current levels (model-dependent), ensuring safe, efficient, and optimized charging that matches your home or public power supply.
2

DELAY CHARGING

Set your EV home charger to start later with adjustable delays in 1-hour increments up to 15 hours. Ideal for reducing electricity costs, optimizing overnight charging, and maximizing energy efficiency.
3

TEMEPERATURE SETTING

Easily switch the temperature display between Celsius and Fahrenheit on your electric vehicle charger. Clear, customizable temperature units help monitor charging conditions and ensure safe, efficient operation for all electric vehicles.

How To Use Creaxio M2C-20 EV Wall Charger

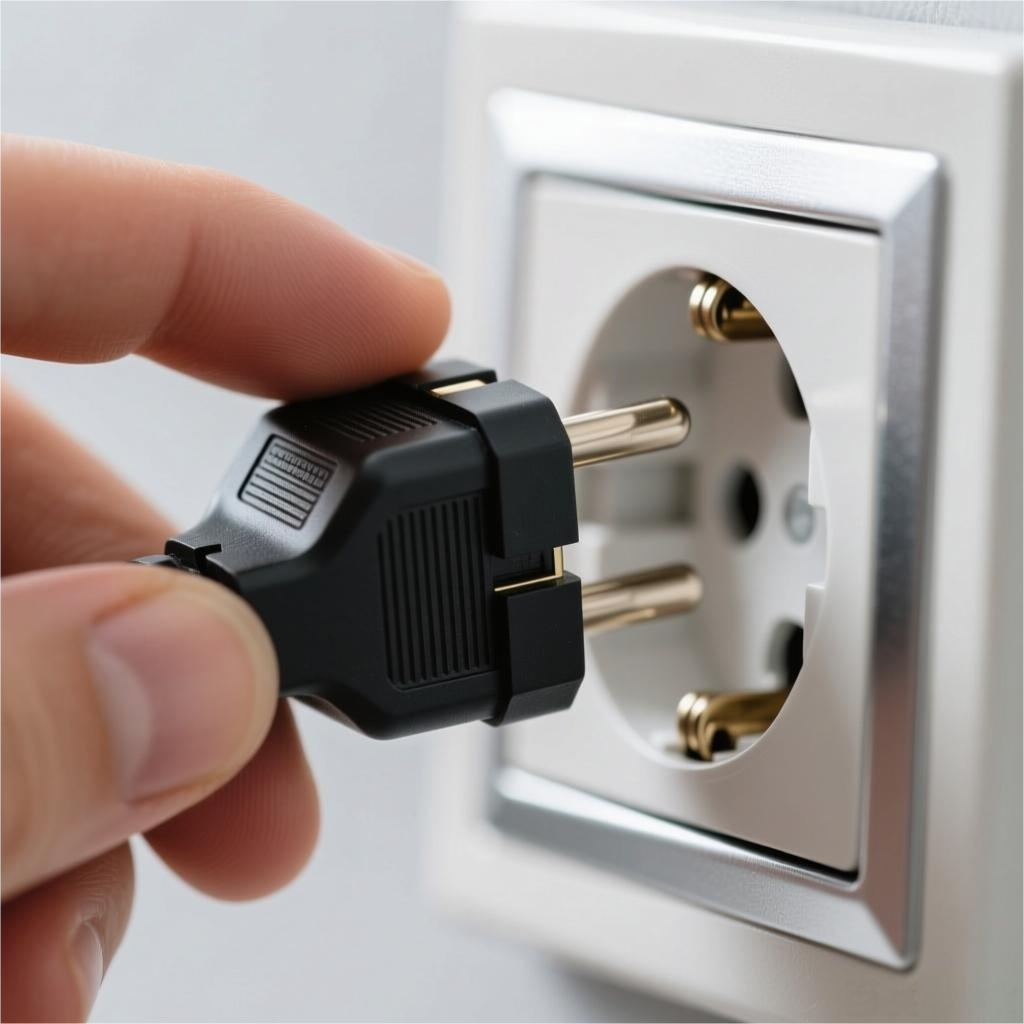

Plug Into Power Plug

Begin by connecting the electric charger’s power plug to a suitable outlet or dedicated charging socket. A secure connection is essential to guarantee a stable power supply, reduce risks, and ensure your electric vehicle receives safe, reliable, and efficient charging.

Adjust Charging Setting

Before starting the session, configure your level 3 EV charger’s smart settings. Use the current adjustable feature to select the right charging level based on your power supply, ensuring both efficiency and safety. Take advantage of delay start to schedule charging during off-peak hours for lower electricity rates, and use delay stop to control when charging automatically ends. These intelligent settings optimize energy use, protect your vehicle, and give you full flexibility in managing your charging schedule.

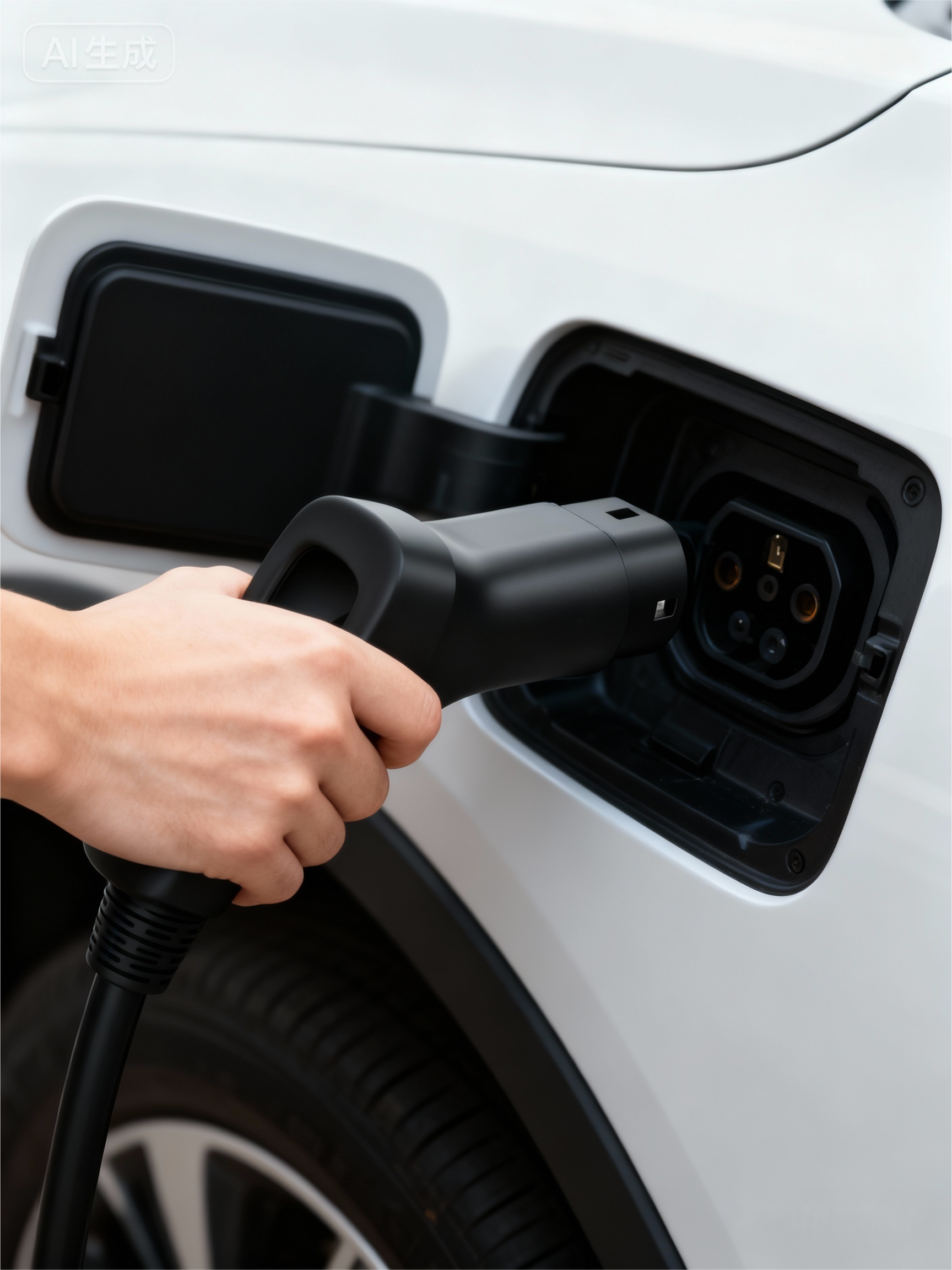

Start Charging

Next, take the charging connector—whether it is a Type 1 plug, Type 2 plug, or GB/T connector—and firmly insert it into your vehicle’s charging port. Make sure it locks into place properly, as this step ensures uninterrupted power flow and protects both the charger and your EV battery system.

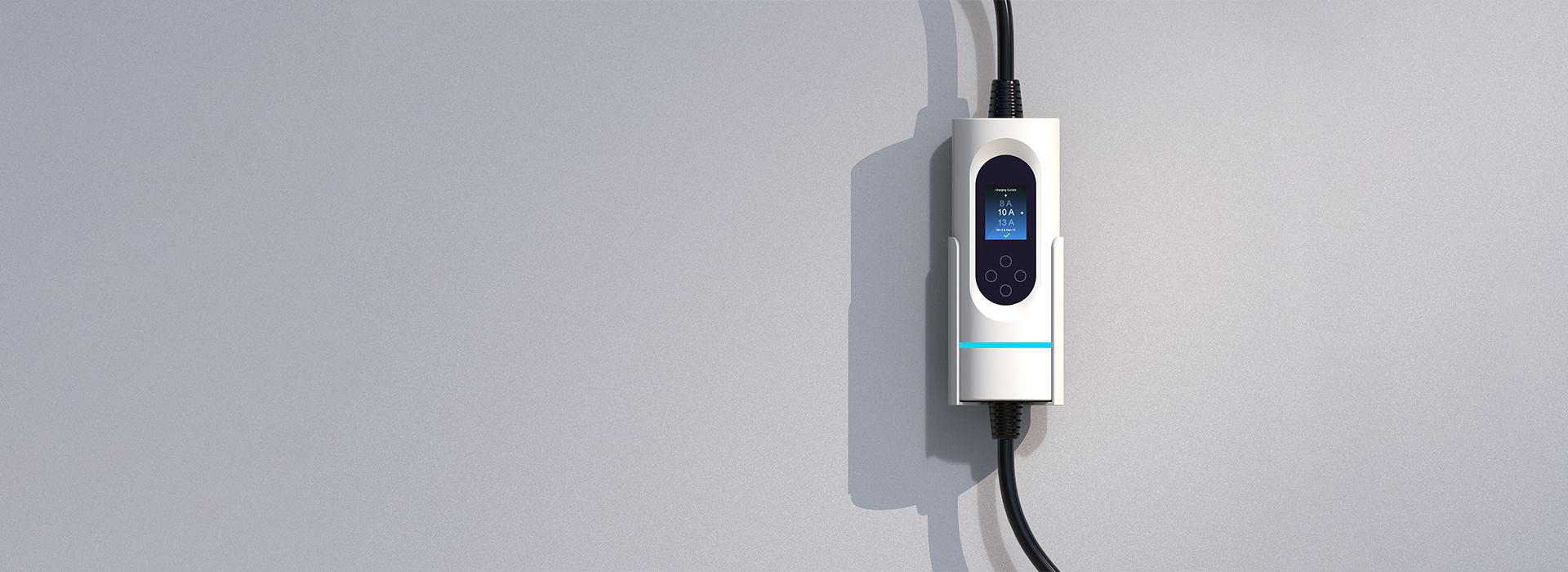

Enclosure of Creaxio M2C-20 Electric Car Charger

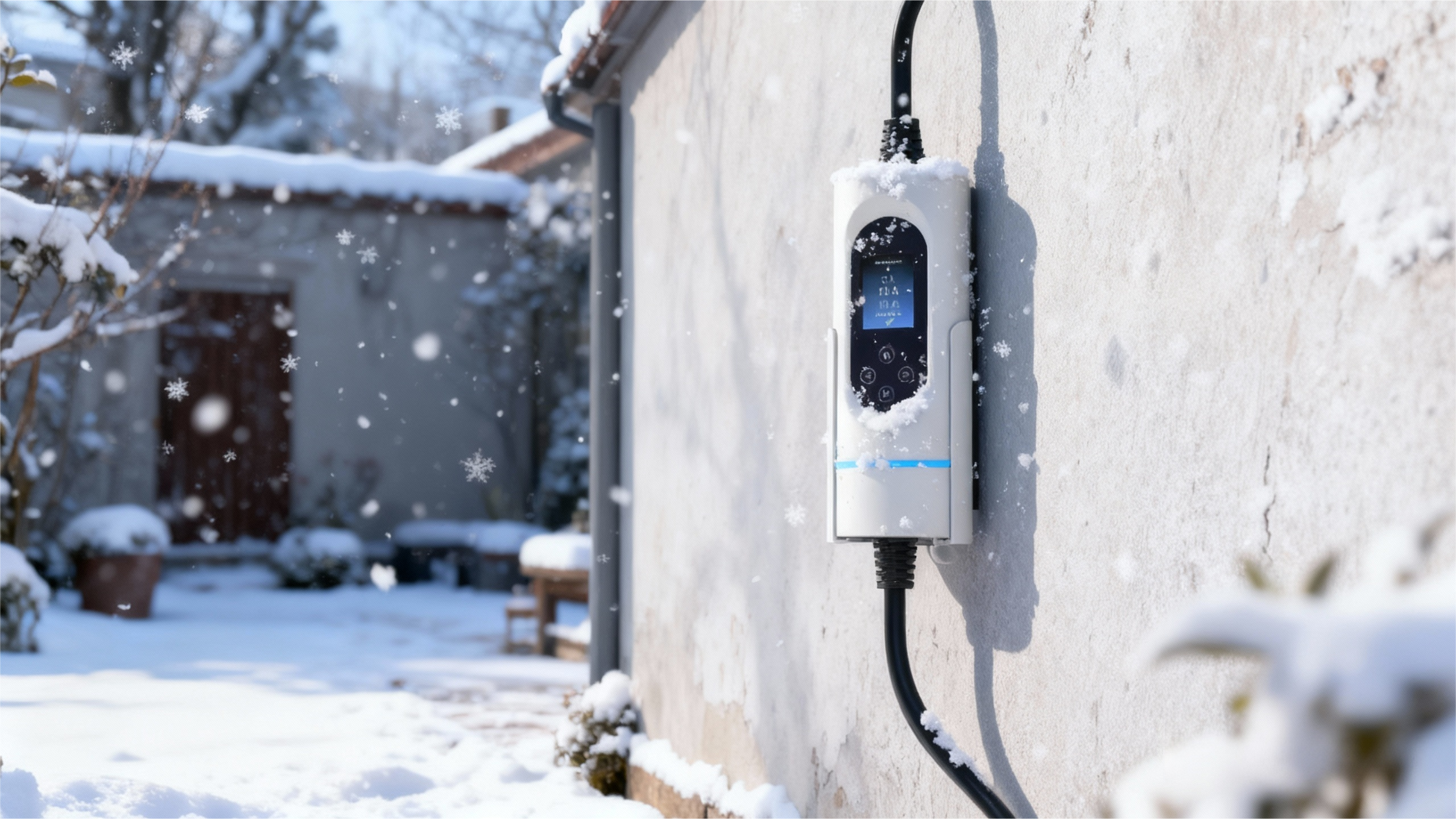

Indoor & Outdoor

Reliable EV charging indoors or outdoors, with durable, weatherproof design ensuring long-lasting performance in any conditions.

GET A QUOTE

Compatibility of Creaxio M2C-20 Electric Car Charger

Compatibilty on charging connector

Our home electric charger are designed for maximum compatibility with a wide range of electric vehicles, supporting Type 1, Type 2, and GB/T connectors. This ensures seamless charging for cars across different regions and standards, whether in North America, Europe, or China. With universal plug support, drivers can rely on a flexible, convenient, and safe charging experience without worrying about connector mismatches. This feature makes our chargers an ideal solution for home, workplace, or public charging stations, enhancing usability and efficiency for all EV owners.

Compatibilty on power connector

The level 2 electric car charger is built for maximum flexibility, supporting a wide range of power plugs, including Schuko, CEE, NEMA, AU, and other regional standards. This ensures safe, reliable, and efficient charging for electric vehicles anywhere in the world. Drivers can conveniently connect to local power sources without needing additional adapters, making our chargers ideal for home, workplace, or travel use. With this universal plug compatibility, EV owners enjoy a hassle-free, seamless charging experience while maintaining safety and consistent performance across different electrical systems.

Waiting

Blue circle lighting indicates the status of “Waiting” and the progress on Setting
Charging

Green cicle lighting indicates the status of “Connecting”, “Charging”, “Finished”.

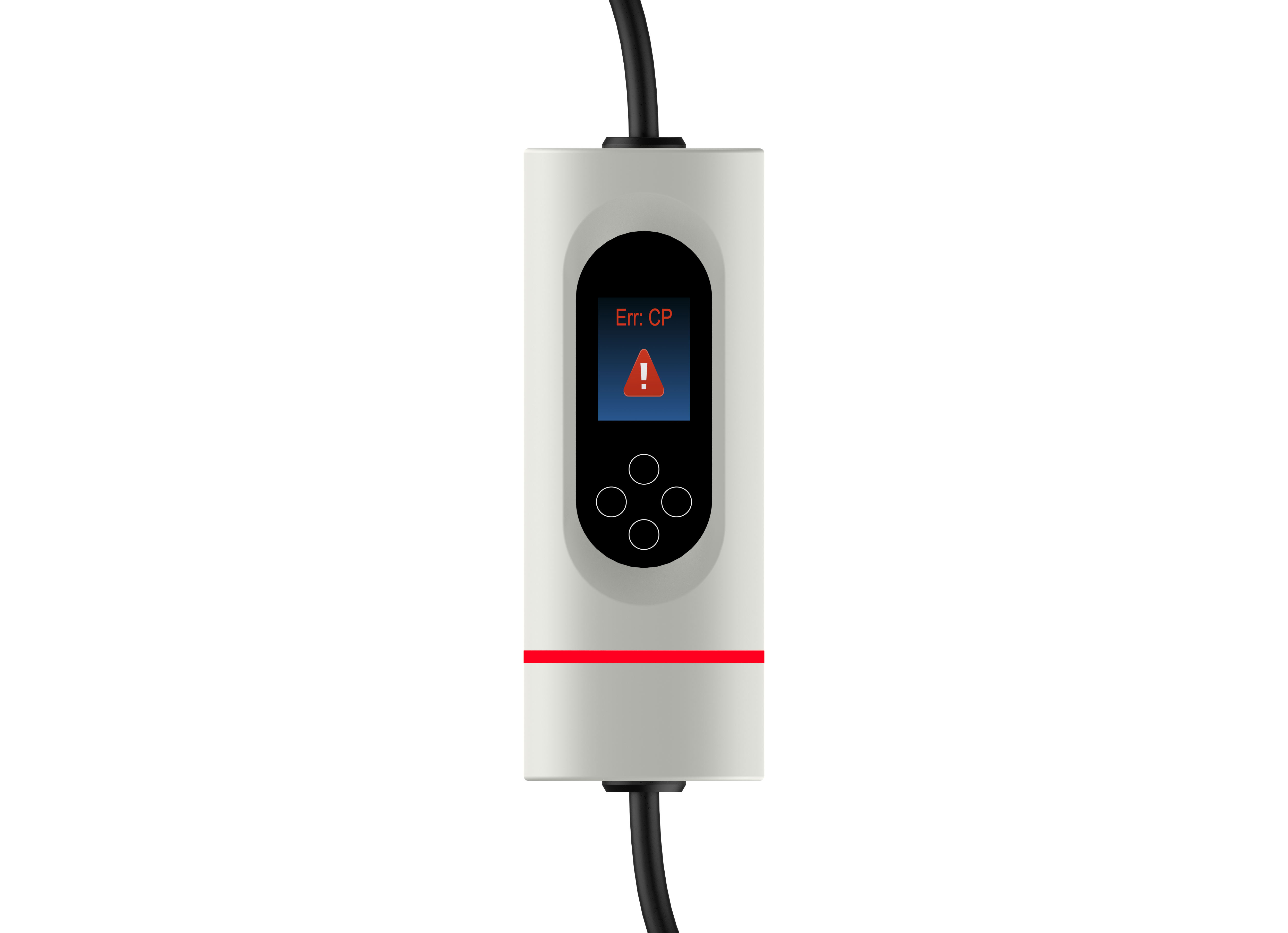

Fault

Red circle lighting indicates the status of “Errors", like: over-current, under-current, over-voltage, under-voltage, over-temperature.

Downloads of Creaxio M2C-20 Portable Charger

M2C.pdf
Manual.pdf

Get A Quote

OEM/ODM On Creaxio of M2C-20 Portable EV Charger

Why Choose Creaxio of M2C-20 Portable Battery Charger

Creaxio of M2C-20 Portable EV Charger is a powerful and user-friendly solution for electric vehicle owners who need flexible and dependable charging at home, at work, or while traveling. Engineered with advanced technology and durable construction, this charger combines convenience, safety, and universal compatibility.

Key Features:

Adjustable Charging Current: Easily switch between 6A and 32A charging levels, with a maximum output of 22kW. The adjustable current lets you customize charging speed according to your EV’s needs and your electrical capacity.

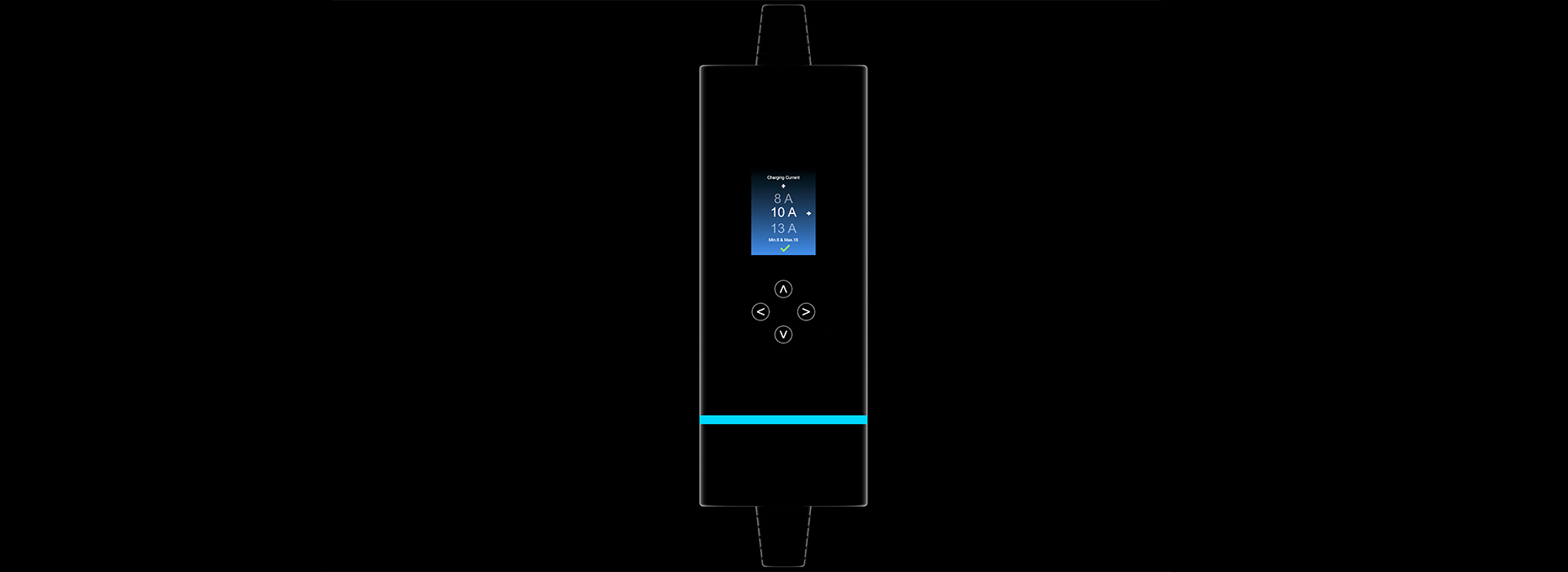

Clear LCD Display: A bright, full-color 2.4 inch LCD screen provides real-time charging data, including power output, current settings, and temperature, giving you complete control and visibility over the charging process.

Advanced Safety Protection: Equipped with multiple layers of protection—under-voltage, overload, short-circuit, leakage, over-temperature, and lightning protection—the Creaxio of M2C-20 charger guarantees safe charging for both your EV and household electrical system.

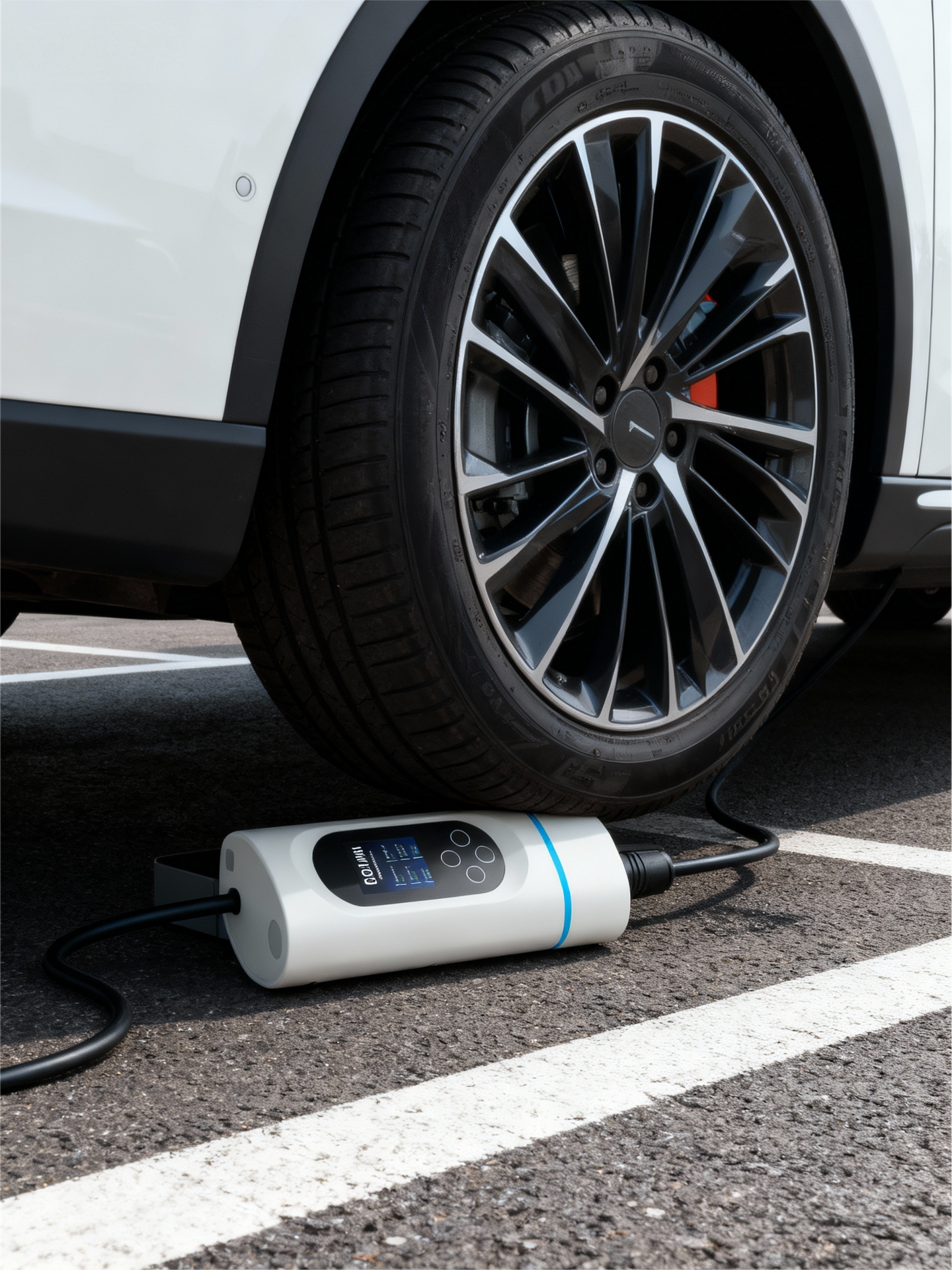

Durable, Weather-Resistant Design: Built to last with IP65 waterproofing and IK10 impact resistance, the type 2 ev charger withstands harsh outdoor environments, making it ideal for both indoor and outdoor use.

Universal EV Compatibility: The Creaxio of M2C-20 portable chargers support multiple connector types, including SAE J1772, IEC 62196-2 (Type 2), and GB/T, as well as plug options such as Schuko, UK, CEE, NEMA, and AU—ensuring compatibility with most electric vehicles worldwide.

Why Choose the Creaxio of M2C-20 Portable Charger?
The Creaxio of M2C-20 Portable Home Car Charger is designed for EV drivers who value safety, flexibility, and convenience. With adjustable current settings, intelligent LCD monitoring, and a rugged weatherproof design, it offers reliable charging in any environment. Whether you’re at home, in the office, or on the road, this charger ensures a fast, safe, and efficient charging experience for your electric vehicle.

Overview On Creaxio of M2C-20 Power Smart Charging Solution

Join the M2C-20 Portable EV Charger Network

The M2C-20 EV Fast Charger is a cutting-edge solution designed for electric vehicle owners seeking fast, safe, and reliable charging. By becoming an authorized agent in your area, you can tap into the booming EV market and offer customers a high-quality, versatile charging solution. As an M2C-20 agent, you’ll gain access to professional technical support, marketing resources, and a trusted brand reputation—empowering you to grow your business while promoting sustainable mobility. Take advantage of this opportunity to lead in the fast-growing EV charging industry in your region.
