Creaxio
M2C-20-S2
Type 1
1 Phase
32A
7.4kW
5M or customized
2.4Inch
6A/8A/10A/13A/16A
0~15h
White
IP65
Polycarbonate
CE
12 Months
| Availability: | |
|---|---|

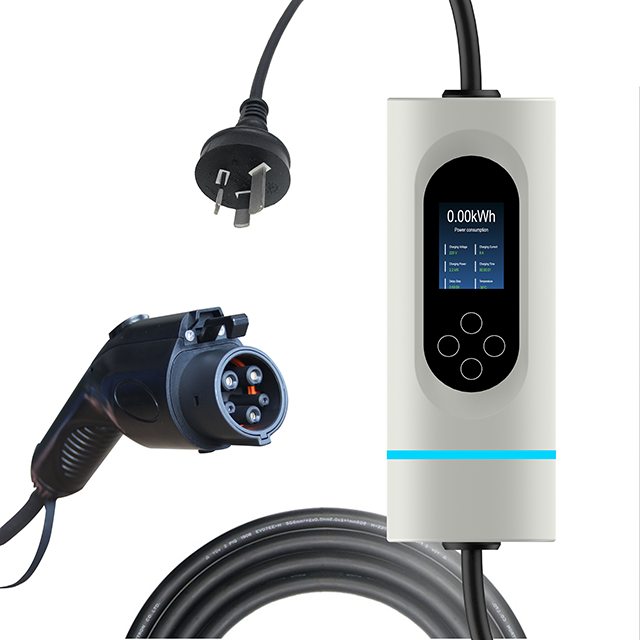

32A SAE J1772 EV charger
The mode 2 portable charger offers unparalleled versatility when it comes to charging options. It supports both standard household outlets (110-240V) and industrial power sockets, allowing you to charge your electric vehicle wherever there is a power source available. This flexibility is particularly useful when you're traveling or staying in locations where dedicated EV charging stations are scarce. Simply plug in the charger and enjoy the convenience of charging your EV from virtually anywhere.
Data Logging: The EV fast charger records and logs charging data, providing users with detailed reports on energy consumption, charging duration, assisting in monitoring usage and making informed decisions.
Auto-Scheduling: The EV home charger offers auto-scheduling capabilities, allowing users to set specific charging schedules based on their preferences or electricity tariff rates, maximizing convenience and cost-efficiency.
Adaptive Charging: The portable electric car charger incorporates adaptive charging technology that adjusts the charging power and current according to the vehicle's battery condition, maximizing battery life and performance.
Compact Design: Portability is a key feature of these chargers, so they are often designed to be lightweight and compact. This allows for easy storage and transportation, making them suitable for use both at home and on the go.
Warranty Coverage: Our team ensures comprehensive 1- year warranty coverage for the Mode 2 portable EV charger. We stand behind the quality of our product and offer warranties that protect customers against manufacturing defects or malfunctions.
Fault Diagnosis: In the event of a charging or connectivity issue, the charger performs fault diagnosis and provides detailed error codes or messages, enabling quick troubleshooting and resolution.
32A SAE J1772 EV charger
The mode 2 portable charger offers unparalleled versatility when it comes to charging options. It supports both standard household outlets (110-240V) and industrial power sockets, allowing you to charge your electric vehicle wherever there is a power source available. This flexibility is particularly useful when you're traveling or staying in locations where dedicated EV charging stations are scarce. Simply plug in the charger and enjoy the convenience of charging your EV from virtually anywhere.
Data Logging: The EV fast charger records and logs charging data, providing users with detailed reports on energy consumption, charging duration, assisting in monitoring usage and making informed decisions.
Auto-Scheduling: The EV home charger offers auto-scheduling capabilities, allowing users to set specific charging schedules based on their preferences or electricity tariff rates, maximizing convenience and cost-efficiency.
Adaptive Charging: The portable electric car charger incorporates adaptive charging technology that adjusts the charging power and current according to the vehicle's battery condition, maximizing battery life and performance.
Compact Design: Portability is a key feature of these chargers, so they are often designed to be lightweight and compact. This allows for easy storage and transportation, making them suitable for use both at home and on the go.
Warranty Coverage: Our team ensures comprehensive 1- year warranty coverage for the Mode 2 portable EV charger. We stand behind the quality of our product and offer warranties that protect customers against manufacturing defects or malfunctions.
Fault Diagnosis: In the event of a charging or connectivity issue, the charger performs fault diagnosis and provides detailed error codes or messages, enabling quick troubleshooting and resolution.
M2C-20 Model Matrix | ||||||
Model | M2C-20-S1 (Single-phase) | M2C-20-S2 (Single-phase) | M2C-20-E1 (Single-phase) | M2C-20-E2 (Single-phase) | M2C-20-E3 (Three-phase) | M2C-20-E4 (Three-phase) |
Max Current | 16A(1) | 32A(1) | 16A(1) | 32A(1) | 16A(1) | 32A(1) |
Vehicle Connector | SAE J1172 (Type 1) | SAE J1172 (Type 1) | IEC62192-2 (Type 2) | IEC62192-2 (Type 2) | IEC62192-2 (Type 2) | IEC62192-2 (Type 2) |
Cable Length | 5M(2) | 5M(2) | 5M(2) | 5M(2) | 5M(2) | 5M(2) |
Maximum Power | 3.7kW | 7.4kW | 3.7kW | 7.4kW | 11kW | 22kW |
Protection | 30mA AC(3) | 30mA AC(3) | 30mA AC(3) | 30mA AC(3) | 30mA AC(3) | 30mA AC(3) |
Input Connector | Any(4) | Any(4) | Any(4) | Any(4) | Any(4) | Any(4) |
Cable Length | 0.5M(5) | 0.5M(5) | 0.5M(5) | 0.5M(5) | 0.5M(5) | 0.5M(5) |
(1) | The charging current could be personalized that based on the local supply current, like 10A in UK; | |||||
(2) | 5M is the length that most used on the market, the max length of the portable charger is 15m; you can choose your needs within the range; | |||||
(3) | The basic protection is 30mA AC, you can update to 30mA AC+6mA DC; | |||||
(4) | Each area has its own power outlet, please choose it according to your needs; | |||||
(5) | 0.5M is the suitable length of input connector, for longer length please ask your supplier to update. | |||||
M2C-20 Model Matrix | ||||||
Model | M2C-20-S1 (Single-phase) | M2C-20-S2 (Single-phase) | M2C-20-E1 (Single-phase) | M2C-20-E2 (Single-phase) | M2C-20-E3 (Three-phase) | M2C-20-E4 (Three-phase) |
Max Current | 16A(1) | 32A(1) | 16A(1) | 32A(1) | 16A(1) | 32A(1) |
Vehicle Connector | SAE J1172 (Type 1) | SAE J1172 (Type 1) | IEC62192-2 (Type 2) | IEC62192-2 (Type 2) | IEC62192-2 (Type 2) | IEC62192-2 (Type 2) |
Cable Length | 5M(2) | 5M(2) | 5M(2) | 5M(2) | 5M(2) | 5M(2) |
Maximum Power | 3.7kW | 7.4kW | 3.7kW | 7.4kW | 11kW | 22kW |
Protection | 30mA AC(3) | 30mA AC(3) | 30mA AC(3) | 30mA AC(3) | 30mA AC(3) | 30mA AC(3) |
Input Connector | Any(4) | Any(4) | Any(4) | Any(4) | Any(4) | Any(4) |
Cable Length | 0.5M(5) | 0.5M(5) | 0.5M(5) | 0.5M(5) | 0.5M(5) | 0.5M(5) |
(1) | The charging current could be personalized that based on the local supply current, like 10A in UK; | |||||
(2) | 5M is the length that most used on the market, the max length of the portable charger is 15m; you can choose your needs within the range; | |||||
(3) | The basic protection is 30mA AC, you can update to 30mA AC+6mA DC; | |||||
(4) | Each area has its own power outlet, please choose it according to your needs; | |||||
(5) | 0.5M is the suitable length of input connector, for longer length please ask your supplier to update. | |||||
