RFID Charging Station

  • ECW-20-ES3

  • Creaxio

  • Type 2

  • 1 Phase

  • 16A

  • 3.7kW

  • Black

  • IP55

  • Polycarbonate

  • CE

  • 12 Months

Availability:

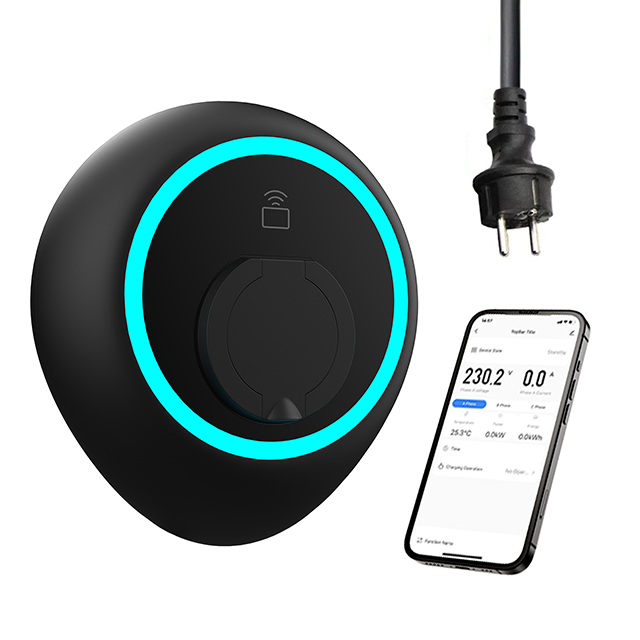

Wall-Mounted RFID Charging Wallbox With Type 2 Socket


The Wallbox mini offers a compact and efficient charging solution for electric vehicle owners. With its sleek and lightweight design, it is perfect for residential use where space is limited. The vehicle charging station features app control, allowing you to adjust the charging current, schedule charging sessions, and access charging reports for efficient management of your electric vehicle charging. Enjoy the benefits of WiFi connectivity, enabling remote monitoring and control of your charging sessions. The EV car charger is compatible with all electric vehicle models on the market, supporting Type 2 and Type 1 plugs and sockets. With its easy installation process, user-friendly operation, and safety protection features, the electric charging is an ideal choice for efficient and reliable charging at home. Embrace electric mobility with the Wallbox.


Easy Installation: Electric car stations feature an easy installation process, allowing for quick and hassle-free setup.

Safety Protection: Ensure safe charging with EV fast charger, which includes safety features such as overcurrent protection and short circuit protection.

Easy Operation: Home car charging station offers a user-friendly interface and straightforward operation, making it accessible for users of all levels of technical expertise.

Compatibility with All Model: EV home charging station is compatible with all electric vehicle models available

Cost Saving: Home car charging point is designed to help users save on charging costs by offering advanced cost-saving features, such as scheduled charging and energy optimization.

Compact and Space-Saving: The compact and space-saving design of vehicle charger makes it ideal for residential environments with limited space, without compromising on functionality and performance.



ECW-20 Model Matrix

Model

ECW-20-AT7

ECW-20-ET7

ECW-20-ET11

ECW-20-ET22

ECW-20-ES7

ECW-20-ES11

ECW-20-ES22

Max Current

32A(1)

32A(1)

16A(1)

32A(1)

16A(1)

32A(1)

32A(1)

Phase

Single-phase

Single-phase

Three-phase

Three-phase

Single-phase

Three-phase

Three-phase

Maximum Power

7.4kW

7.4kW

11kW

22kW

7.4kW

11kW

22kW

Vehicle Connector

Cable

Cable

Cable

Cable

Socket

Socket

Socket

Standard

SAE J1172

(Type 1)

IEC62192-2

(Type 2)

IEC62192-2

(Type 2)

IEC62192-2

(Type 2)

IEC62192-2

(Type 2)

IEC62192-2

(Type 2)

IEC62192-2

(Type 2)

Cable Length

5M(2)

5M(2)

5M(2)

5M(2)

N/A

N/A

N/A

Protection

30mA AC(3)

30mA AC(3)

30mA AC(3)

30mA AC(3)

30mA AC(3)

30mA AC(3)

30mA AC(3)

Input Connector

Any(4)

Any(4)

Any(4)

Any(4)

Any(4)

Any(4)

Any(4)

Cable Length

0.5M(5)

0.5M(5)

0.5M(5)

0.5M(5)

0.5M(5)

0.5M(5)

0.5M(5)

(1)

The charging current could be personalized that based on the local supply current, like 10A in UK;

(2)

5M is the length that most used on the market, the max length of the portable charger is 15m; you can choose your needs within the range;

(3)

The basic protection is 30mA AC, for better version you can ask 30mA AC+6mA DC;

(4)

Each area has its own power outlet, please choose it according to your needs;

(5)

0.5M is the suitable length of input connector, for longer length please ask your supplier to update.


RELATED PRODUCTS

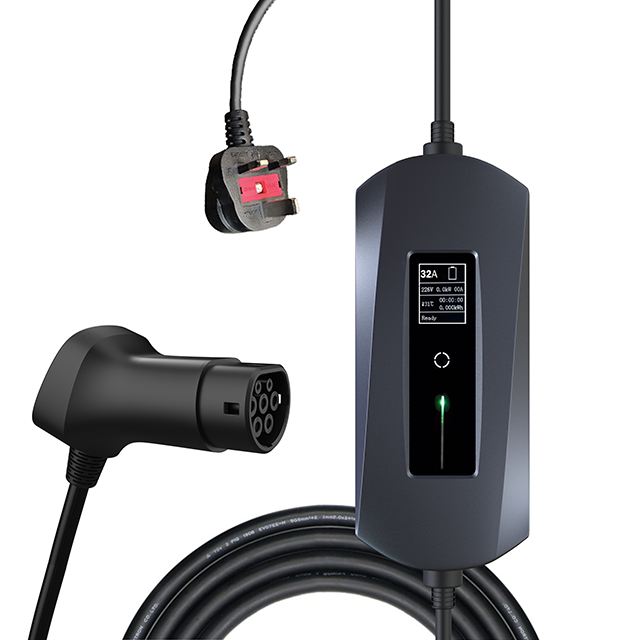

Fast and Reliable Charger

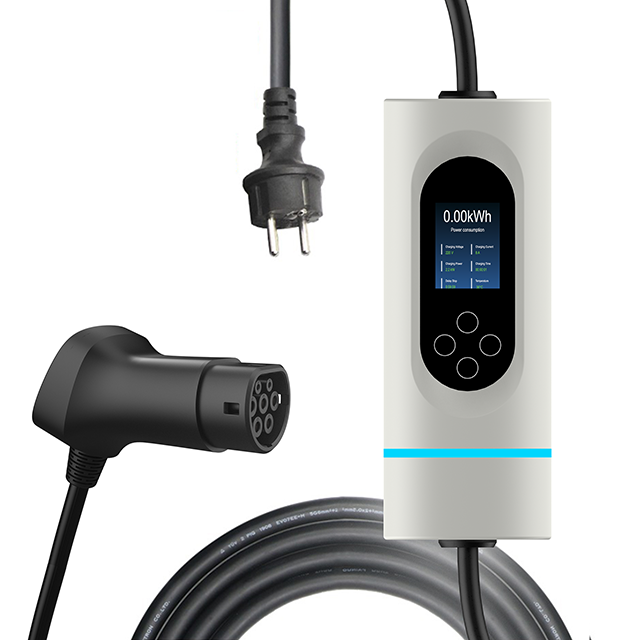

16A1P battery charger
