Creaxio
PC001-16A1P
Type 2
1 Phase
16A
3.7kW
5M or customized
1.8Inch
6A/8A/10A/13A/16A
0~15h
Black
IP65
Polycarbonate
CE
12 Months
| Availability: | |
|---|---|

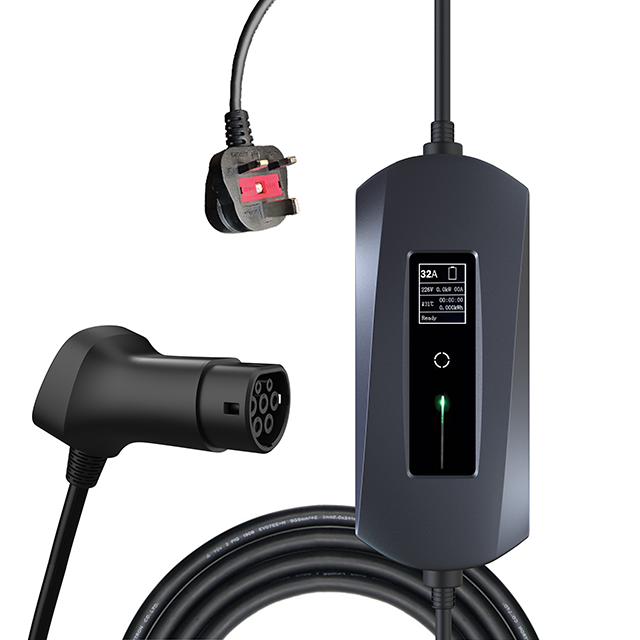

Quick charging for maximum convenience and peace of mind
The Fast and Reliable Charger is a high-performance charging solution designed to deliver fast and reliable charging for electric vehicles. With its cutting-edge technology and robust construction, it provides a speedy and efficient charging experience. Say goodbye to long charging times and hello to the convenience and peace of mind that this charger brings to your electric vehicle journey.
High Charging Power
The fast charger for electric cars offers exceptional 11kW charging power, reducing the time it takes to charge your EV significantly.
Adjustable Charging Current
With the ability to adjust the charging current from 8A to 32A, the electric vehicle battery charger enables you to customize the charging speed based on your specific requirements.
Advanced Safety Features
Equipped with multiple safety mechanisms, including surge protection, temperature control, and overcurrent protection, the 11kW EV charger keeps you and your vehicle safe during charging.
Compact and Durable Design
The EV smart charger is built to last, with a sturdy construction that can withstand the rigors of frequent use. Its compact design ensures easy storage and portability.
Customized Charging Cable
The charging cable can be customized as you want, from 5 meters to 15 meters.
Weather-Resistant Housing
Engineered with a weather-resistant housing, the electric car charging units remains durable and functional, even in challenging outdoor conditions.
Quick charging for maximum convenience and peace of mind
The Fast and Reliable Charger is a high-performance charging solution designed to deliver fast and reliable charging for electric vehicles. With its cutting-edge technology and robust construction, it provides a speedy and efficient charging experience. Say goodbye to long charging times and hello to the convenience and peace of mind that this charger brings to your electric vehicle journey.
High Charging Power
The fast charger for electric cars offers exceptional 11kW charging power, reducing the time it takes to charge your EV significantly.
Adjustable Charging Current
With the ability to adjust the charging current from 8A to 32A, the electric vehicle battery charger enables you to customize the charging speed based on your specific requirements.
Advanced Safety Features
Equipped with multiple safety mechanisms, including surge protection, temperature control, and overcurrent protection, the 11kW EV charger keeps you and your vehicle safe during charging.
Compact and Durable Design
The EV smart charger is built to last, with a sturdy construction that can withstand the rigors of frequent use. Its compact design ensures easy storage and portability.
Customized Charging Cable
The charging cable can be customized as you want, from 5 meters to 15 meters.
Weather-Resistant Housing
Engineered with a weather-resistant housing, the electric car charging units remains durable and functional, even in challenging outdoor conditions.
Product | Mode 2 Portable Charger | ||
Supplier Code | ECO-PC001-1601 | ECO-PC001-3201 | ECO-PC001-1603 |
Rated Power | 16A Single Phase | 32A Single Phase | 16A Three Phase |
Current Adjustable | 6A/8A/10A/13A/16A | 10A/16A/20A/24A/32A | 6A/8A/10A/13A/16A |
Delay Charging | From 0hour to 15hours | ||
Frequency | 50Hz/60Hz | ||
Operation Voltage | 230VAC ±10% / 400VAC ±10% | ||
Insulation Resistance | >1000mΩ(DC500V) | ||
Terminal Temperature Rise | <50K | ||
Withstand Voltage | 2000V | ||
Contact Resistance | 0.5mΩ Max | ||
Mechanical Life | no-load plug in/out >10000 times | ||
Coupled Insertion Force | 45N<F<100N | ||
Impact of External | can afford 1M drop and 2T vehicle run over press | ||
Operating Temperature | -30 ̊C to +50 ̊C | ||
Working Altitude | <2000M | ||
RCD | 30mA AC or Optional(30mA AC+6mA DC) | ||
Housing Material | PC+GF | ||
Front Panel | PC | ||
Protection Level | IP65 | ||
Charging Outlet | Type 1 or Type 2 | Type 1 or Type 2 | Type 2 |
Charging Method | Plug and In/Delay charging | ||
Size | 255*109*55mm | ||
Application Site | Indoor/Outdoor | ||
Safety Standard | IEC62752/IEC62196 | ||
Warranty | 1 Years | ||
Product | Mode 2 Portable Charger | ||
Supplier Code | ECO-PC001-1601 | ECO-PC001-3201 | ECO-PC001-1603 |
Rated Power | 16A Single Phase | 32A Single Phase | 16A Three Phase |
Current Adjustable | 6A/8A/10A/13A/16A | 10A/16A/20A/24A/32A | 6A/8A/10A/13A/16A |
Delay Charging | From 0hour to 15hours | ||
Frequency | 50Hz/60Hz | ||
Operation Voltage | 230VAC ±10% / 400VAC ±10% | ||
Insulation Resistance | >1000mΩ(DC500V) | ||
Terminal Temperature Rise | <50K | ||
Withstand Voltage | 2000V | ||
Contact Resistance | 0.5mΩ Max | ||
Mechanical Life | no-load plug in/out >10000 times | ||
Coupled Insertion Force | 45N<F<100N | ||
Impact of External | can afford 1M drop and 2T vehicle run over press | ||
Operating Temperature | -30 ̊C to +50 ̊C | ||
Working Altitude | <2000M | ||
RCD | 30mA AC or Optional(30mA AC+6mA DC) | ||
Housing Material | PC+GF | ||
Front Panel | PC | ||
Protection Level | IP65 | ||
Charging Outlet | Type 1 or Type 2 | Type 1 or Type 2 | Type 2 |
Charging Method | Plug and In/Delay charging | ||
Size | 255*109*55mm | ||
Application Site | Indoor/Outdoor | ||
Safety Standard | IEC62752/IEC62196 | ||
Warranty | 1 Years | ||
