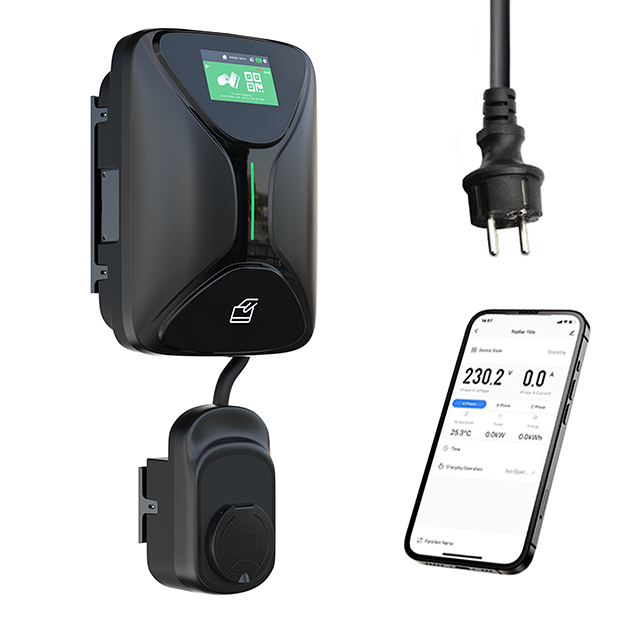

Smart Wallbox EV Charger
Home » Products » Advanced station » Smart Wallbox EV Charger

loading

Smart Wallbox EV Charger

  • EVS-DT3

  • Creaxio

  • Type 2

  • 1 Phase

  • 16A

  • 3.7kW

  • 5M or customized

  • 4.3Inch

  • 6A/8A/10A/13A/16A

  • 0~15h

  • yes

  • Black

  • IP55

  • Polycarbonate

  • CE

  • 12 Months

Availability:


3.7kw EV Wallbox Charger APP For Electric Vehicles


Experience the future of electric vehicle charging with our Smart Wallbox EV Charger. Enjoy the convenience of the integrated app for easy control and monitoring of your charging sessions. With its advanced features, safety measures, and compatibility with all electric vehicle models, our charger is the smart choice for electric vehicle owners.


Socket or Tethered Version: Choose between a socket version or a tethered version with an integrated cable, electric car wall charger offers flexibility for different charging needs.

Liquid Cooling: Charging pole incorporate advanced liquid cooling technology to maintain optimal temperature levels during high-power charging sessions.

Modular Design: 3 phase EV charger employees a modular design that allows for easy scalability and expansion of charging infrastructure.

Enhanced Safety Features: Ensure maximum safety during charging with features like overheat protection, short circuit protection, and fault detection.

Customizable Cable Length: Customize the cable length according to installation requirements, providing a neat and optimized charging setup.

Compatibility with All Electric Vehicle Models: E-car charging points ensure compatibility with all electric vehicle models on the market, supporting various charging standards and connector types.





Product

Advanced Charging Station

Supplier Code

ECO-EVS-D

Rated Power

3.7kW/7kW/11kW/22kW

Frequency

50Hz/60Hz

Operation Voltage

230VAC ±10% 400VAC ±10%

Insulation Resistance

>1000mΩ(DC500V)

Terminal Temperature Rise

<50K

Withstand Voltage

2000V

Contact Resistance

0.5mΩ Max

Mechanical Life

no-load plug in/out >10000 times

Impact of External

can afford 1M drop and 2T vehicle run over press

Operating Temperature

-30 ̊C to +50 ̊C

Applied Materials

Thermoplastic, flame retardant grade UL94 V-0


Copper Alloy, Silver Plating

Working Altitude

<2000M

Display

4.3 Inch LCD touchable

Current Adjustable

Yes

Delay Charging

Yes

Delay Stop

Yes

Dynamic Load Balance

Yes

RCD

Type A or Type B(30mA AC+6mA DC)

Network Gateway

Wifi

Communication Protocol

Modbus-rtu

Housing Material

PCV0

Protection Level

IP65

Charging Outlet

5M Type 1 or 5M Type 2

Type 2 Socket with Magnetic lock

Charging Method

RFID

Size

400*304*125mm

Safety Standard

IEC 61851-2017

Warranty

1 Years
