EVS-DT11
Creaxio
Type 2
3 Phase
16A
11kW
5M or customized
4.3Inch
6A/8A/10A/13A/16A
0~15h
yes
Black
IP55
Polycarbonate
CE
12 Months
| Availability: | |
|---|---|

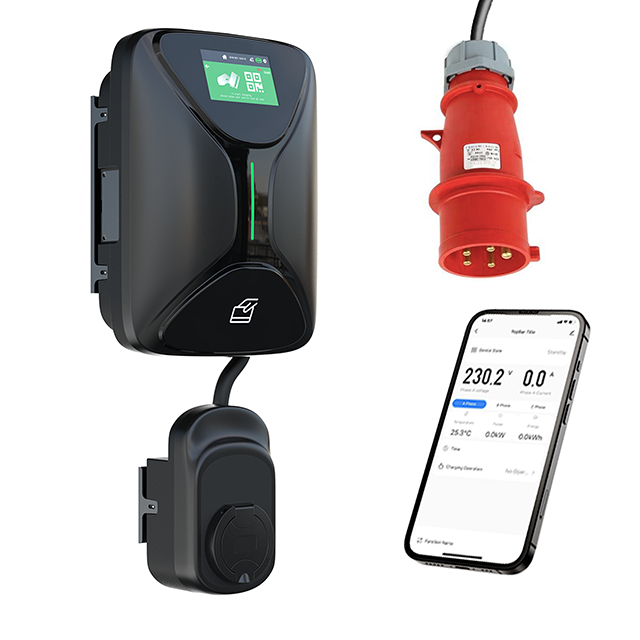

EV Charger With Mobile APP
Choose between a socket version or a tethered version with an integrated cable, allowing you to select the option that best suits your charging needs. With customizable cable length, you can ensure a neat and optimized charging setup, tailored to your specific installation requirements. Our charging station is designed for wide compatibility, supporting various electric vehicle models and charging standards, including type 1 and type 2 electric car plugs. This ensures that no matter your vehicle's requirements, our charging station is ready to deliver a reliable and efficient charging experience.
Ultra-Fast Charging: Experience ultra-fast charging speeds for rapid charging sessions, reducing charging time significantly.
Socket or Tethered Version: Choose between a socket version or a tethered version with an integrated cable for added convenience and flexibility.
Customizable Cable Length: Tailor the cable length to suit specific installation requirements, providing a neat and optimized charging setup.
4.3-Inch Touchscreen Display: An intuitive, responsive touchscreen offers real-time information on charging status, current, voltage, power, and time for effortless monitoring.
Wide Compatibility: Wallbox EV charger is compatible with a wide range of electric vehicle models and charging standards, including type 1, type 2 EV plugs.
Rugged IP55 & IK10 Housing: The charger's robust IP55-rated design shields it from the elements, while its IK10-rated construction ensures exceptional impact resistance.
EV Charger With Mobile APP
Choose between a socket version or a tethered version with an integrated cable, allowing you to select the option that best suits your charging needs. With customizable cable length, you can ensure a neat and optimized charging setup, tailored to your specific installation requirements. Our charging station is designed for wide compatibility, supporting various electric vehicle models and charging standards, including type 1 and type 2 electric car plugs. This ensures that no matter your vehicle's requirements, our charging station is ready to deliver a reliable and efficient charging experience.
Ultra-Fast Charging: Experience ultra-fast charging speeds for rapid charging sessions, reducing charging time significantly.
Socket or Tethered Version: Choose between a socket version or a tethered version with an integrated cable for added convenience and flexibility.
Customizable Cable Length: Tailor the cable length to suit specific installation requirements, providing a neat and optimized charging setup.
4.3-Inch Touchscreen Display: An intuitive, responsive touchscreen offers real-time information on charging status, current, voltage, power, and time for effortless monitoring.
Wide Compatibility: Wallbox EV charger is compatible with a wide range of electric vehicle models and charging standards, including type 1, type 2 EV plugs.
Rugged IP55 & IK10 Housing: The charger's robust IP55-rated design shields it from the elements, while its IK10-rated construction ensures exceptional impact resistance.
Product | Advanced Charging Station | |
Supplier Code | ECO-EVS-D | |
Rated Power | 3.7kW/7kW/11kW/22kW | |
Frequency | 50Hz/60Hz | |
Operation Voltage | 230VAC ±10% 400VAC ±10% | |
Insulation Resistance | >1000mΩ(DC500V) | |
Terminal Temperature Rise | <50K | |
Withstand Voltage | 2000V | |
Contact Resistance | 0.5mΩ Max | |
Mechanical Life | no-load plug in/out >10000 times | |
Impact of External | can afford 1M drop and 2T vehicle run over press | |
Operating Temperature | -30 ̊C to +50 ̊C | |
Applied Materials | Thermoplastic, flame retardant grade UL94 V-0 | |
Copper Alloy, Silver Plating | ||
Working Altitude | <2000M | |
Display | 4.3 Inch LCD touchable | |
Current Adjustable | Yes | |
Delay Charging | Yes | |
Delay Stop | Yes | |
Dynamic Load Balance | Yes | |
RCD | Type A or Type B(30mA AC+6mA DC) | |
Network Gateway | Wifi | |
Communication Protocol | Modbus-rtu | |
Housing Material | PCV0 | |
Protection Level | IP65 | |
Charging Outlet | 5M Type 1 or 5M Type 2 | Type 2 Socket with Magnetic lock |
Charging Method | RFID | |
Size | 400*304*125mm | |
Safety Standard | IEC 61851-2017 | |
Warranty | 1 Years | |
