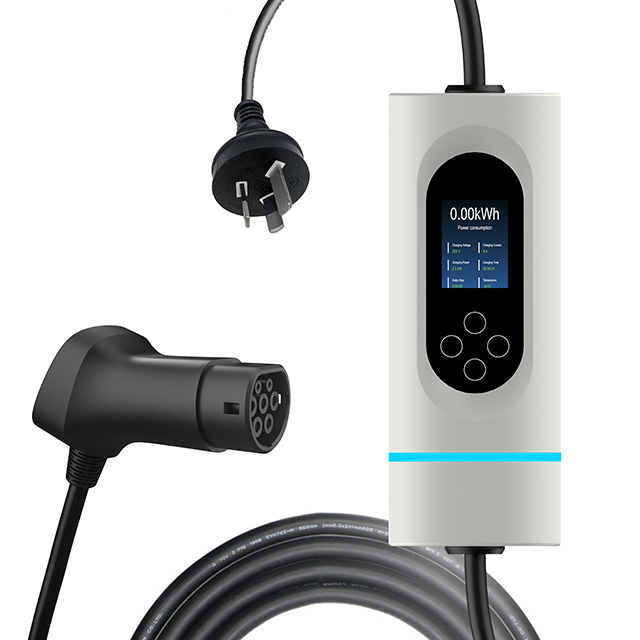

Car charging Charger

  • Creaxio

  • M2C-20-E1

  • Type 2

  • 1 Phase

  • 16A

  • 3.7kW

  • 5M or customized

  • 2.4Inch

  • 6A/8A/10A/13A/16A

  • 0~15h

  • White

  • IP65

  • Polycarbonate

  • CE

  • 12 Months

Availability:


22kw 3phase portable electric car charger


Experience rapid charging for your electric vehicle with our high-power portable EV charger, up to 22kW. Our charger combines high power output with advanced technology to deliver fast and efficient charging, ensuring that your EV is ready to go in no time. Experience the convenience and reliability of our high-power charger.


Waterproof Protection:With its IP65 classification, the EV battery charger is well-suited for outdoor usage and can withstand exposure to rain or splashes. Its robust construction and sealing prevent water ingress, safeguarding the charger's electrical components and ensuring safe and efficient charging even in wet conditions.

Safety Protection:Hybrid car charging charger prioritizes user safety with built-in overload protection. It constantly monitors the charging process and automatically adjusts the current to prevent overloading, ensuring that the charger operates within safe limits and protecting both the charger and the vehicle from potential damage.

Compatibility:Mobile EV charger supports a wide range of charging standards, including SAE J1772, IEC 62196, and Type 2 connectors, covering the majority of electric vehicles worldwide. This compatibility ensures that owners of different electric vehicle brands can confidently utilize the charger without worrying about connector compatibility issues.

Various Power Plug:Portable EV cable stands out with its versatile power plug options, ensuring compatibility with power sockets worldwide. It includes a range of interchangeable plugs, allowing users to connect the charger to various power sockets found in different countries and regions, making it suitable for global use.

Type 1 or Type 2:Portable level 2 charger's Type 1 or Type 2 charging plug is designed with a user-friendly interface, allowing for easy insertion and removal. The ergonomic design ensures a secure fit, minimizing the risk of accidental disconnection during the charging process.

Convenient:The AC EV charger features a compact and lightweight design, making it highly portable. Users can easily carry it in their vehicle or store it in the trunk, ensuring charging convenience wherever they go, whether it's at home, the workplace, or on a road trip.



M2C-20 Model Matrix

Model

M2C-20-S1

(Single-phase)

M2C-20-S2

(Single-phase)

M2C-20-E1

(Single-phase)

M2C-20-E2

(Single-phase)

M2C-20-E3

(Three-phase)

M2C-20-E4

(Three-phase)

Max Current

16A(1)

32A(1)

16A(1)

32A(1)

16A(1)

32A(1)

Vehicle Connector

SAE J1172

(Type 1)

SAE J1172

(Type 1)

IEC62192-2

(Type 2)

IEC62192-2

(Type 2)

IEC62192-2

(Type 2)

IEC62192-2

(Type 2)

Cable Length

5M(2)

5M(2)

5M(2)

5M(2)

5M(2)

5M(2)

Maximum Power

3.7kW

7.4kW

3.7kW

7.4kW

11kW

22kW

Protection

30mA AC(3)

30mA AC(3)

30mA AC(3)

30mA AC(3)

30mA AC(3)

30mA AC(3)

Input Connector

Any(4)

Any(4)

Any(4)

Any(4)

Any(4)

Any(4)

Cable Length

0.5M(5)

0.5M(5)

0.5M(5)

0.5M(5)

0.5M(5)

0.5M(5)

(1)

The charging current could be personalized that based on the local supply current, like 10A in UK;

(2)

5M is the length that most used on the market, the max length of the portable charger is 15m; you can choose your needs within the range;

(3)

The basic protection is 30mA AC, you can update to 30mA AC+6mA DC;

(4)

Each area has its own power outlet, please choose it according to your needs;

(5)

0.5M is the suitable length of input connector, for longer length please ask your supplier to update.
