Creaxio
PC001-16A1P
Type 2
1 Phase
16A
3.7kW
5M or customized
1.8Inch
6A/8A/10A/13A/16A
0~15h
Black
IP65
Polycarbonate
CE
12 Months
| Availability: | |
|---|---|
Power on the go for limitless adventures

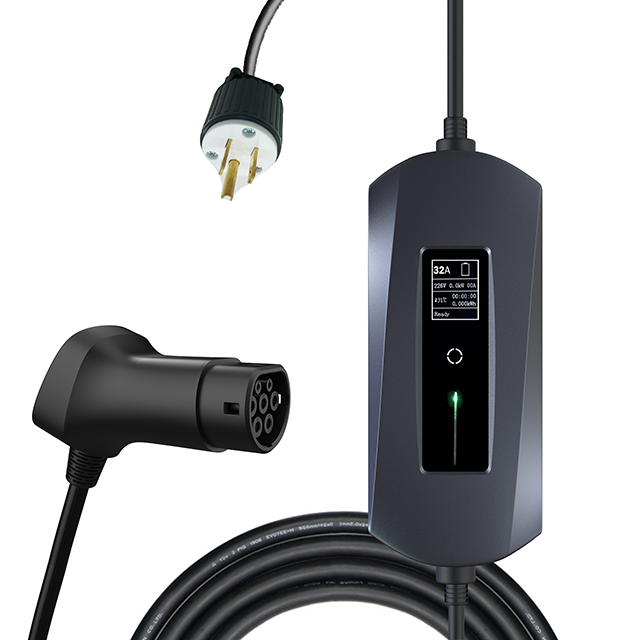

The Portable Power Solution is your answer to on-the-go charging needs. Designed for portability and convenience, this charger allows you to charge your electric vehicle wherever you are. Whether you're exploring the great outdoors or going on a road trip, this charger provides the power you need to keep your electric vehicle running smoothly, allowing you to embark on limitless adventures with confidence.
TurboBoost Technology: The fastest charging EV charger utilizes innovative TurboBoost technology to deliver maximum charging power 11kW, reducing charging times significantly.
Multi-Vehicle Compatibility: With broad compatibility across various electric vehicle models, the EV rapid charger is a versatile charging solution for EV owners.
IP65 protection level: The mobile charger is tested well that it has the ability work well under the environment of test IP65.
Robust Construction: Built to withstand daily use and outdoor environments, the outdoor electric car charger features a robust construction that guarantees durability and longevity.
Advanced Safety Measures: The home EV charger incorporates advanced safety features, including surge protection, ground fault detection, and over-voltage protection, ensuring the highest level of safety during charging.
User-Friendly Interface: The electric car chargers come with an intuitive interface that provides real-time charging updates and allows for easy control and monitoring of the charging process.
Power on the go for limitless adventures
The Portable Power Solution is your answer to on-the-go charging needs. Designed for portability and convenience, this charger allows you to charge your electric vehicle wherever you are. Whether you're exploring the great outdoors or going on a road trip, this charger provides the power you need to keep your electric vehicle running smoothly, allowing you to embark on limitless adventures with confidence.
TurboBoost Technology: The fastest charging EV charger utilizes innovative TurboBoost technology to deliver maximum charging power 11kW, reducing charging times significantly.
Multi-Vehicle Compatibility: With broad compatibility across various electric vehicle models, the EV rapid charger is a versatile charging solution for EV owners.
IP65 protection level: The mobile charger is tested well that it has the ability work well under the environment of test IP65.
Robust Construction: Built to withstand daily use and outdoor environments, the outdoor electric car charger features a robust construction that guarantees durability and longevity.
Advanced Safety Measures: The home EV charger incorporates advanced safety features, including surge protection, ground fault detection, and over-voltage protection, ensuring the highest level of safety during charging.
User-Friendly Interface: The electric car chargers come with an intuitive interface that provides real-time charging updates and allows for easy control and monitoring of the charging process.
Product | Mode 2 Portable Charger | ||
Supplier Code | PC001-1601 | PC001-3201 | PC001-1603 |
Rated Power | 16A Single Phase | 32A Single Phase | 16A Three Phase |
Current Adjustable | 6A/8A/10A/13A/16A | 10A/16A/20A/24A/32A | 6A/8A/10A/13A/16A |
Delay Charging | From 0hour to 15hours | ||
Frequency | 50Hz/60Hz | ||
Operation Voltage | 230VAC ±10% / 400VAC ±10% | ||
Insulation Resistance | >1000mΩ(DC500V) | ||
Terminal Temperature Rise | <50K | ||
Withstand Voltage | 2000V | ||
Contact Resistance | 0.5mΩ Max | ||
Mechanical Life | no-load plug in/out >10000 times | ||
Coupled Insertion Force | 45N<F<100N | ||
Impact of External | can afford 1M drop and 2T vehicle run over press | ||
Operating Temperature | -30 ̊C to +50 ̊C | ||
Working Altitude | <2000M | ||
RCD | 30mA AC or Optional(30mA AC+6mA DC) | ||
Housing Material | PC+GF | ||
Front Panel | PC | ||
Protection Level | IP65 | ||
Charging Outlet | Type 1 or Type 2 | Type 1 or Type 2 | Type 2 |
Charging Method | Plug and In/Delay charging | ||
Size | 255*109*55mm | ||
Application Site | Indoor/Outdoor | ||
Safety Standard | IEC62752/IEC62196 | ||
Warranty | 1 Years | ||
Product | Mode 2 Portable Charger | ||
Supplier Code | PC001-1601 | PC001-3201 | PC001-1603 |
Rated Power | 16A Single Phase | 32A Single Phase | 16A Three Phase |
Current Adjustable | 6A/8A/10A/13A/16A | 10A/16A/20A/24A/32A | 6A/8A/10A/13A/16A |
Delay Charging | From 0hour to 15hours | ||
Frequency | 50Hz/60Hz | ||
Operation Voltage | 230VAC ±10% / 400VAC ±10% | ||
Insulation Resistance | >1000mΩ(DC500V) | ||
Terminal Temperature Rise | <50K | ||
Withstand Voltage | 2000V | ||
Contact Resistance | 0.5mΩ Max | ||
Mechanical Life | no-load plug in/out >10000 times | ||
Coupled Insertion Force | 45N<F<100N | ||
Impact of External | can afford 1M drop and 2T vehicle run over press | ||
Operating Temperature | -30 ̊C to +50 ̊C | ||
Working Altitude | <2000M | ||
RCD | 30mA AC or Optional(30mA AC+6mA DC) | ||
Housing Material | PC+GF | ||
Front Panel | PC | ||
Protection Level | IP65 | ||
Charging Outlet | Type 1 or Type 2 | Type 1 or Type 2 | Type 2 |
Charging Method | Plug and In/Delay charging | ||
Size | 255*109*55mm | ||
Application Site | Indoor/Outdoor | ||
Safety Standard | IEC62752/IEC62196 | ||
Warranty | 1 Years | ||
