EVS-DS3
Creaxio
Type 2
1 Phase
16A
3.7kW
4.3Inch
6A/8A/10A/13A/16A
0~15h
yes
Black
IP55
Polycarbonate
CE
12 Months
| Availability: | |
|---|---|

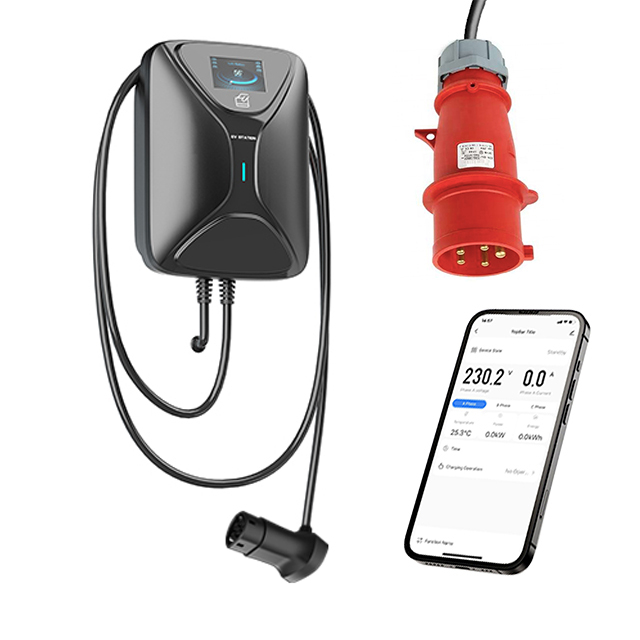

Full-featured Home EV Charger
With its IP55-rated housing, our charger offers excellent protection against dust and water ingress. The IK10 rating ensures high impact resistance, ensuring durability and longevity. Experience smart control with real-time monitoring and remote functionalities through the app. Stay updated on the charging status, manage charging sessions, and have full control over your charging station, all at your fingertips.
IP55 and IK10 Housing: Designed with a durable IP55-rated housing, providing excellent protection against dust and water ingress. The IK10 rating ensures high impact resistance.
App Control: Take control of the charging process through a dedicated mobile app, allowing for current adjustment, schedule charging, charging reports, and cost-saving features.
Smart Control: Seamlessly manage and monitor the charging station via the app, providing real-time status updates and remote control functionalities.
Emergency Button: Equipped with an emergency button for immediate shutdown or interruption of the charging process in case of emergencies or safety concerns.
WiFi Connectivity: Connect the charging station to a WiFi network for convenient access to online features, remote monitoring, and firmware updates.
RFID Function: Enable secure access control through the integrated RFID function, ensuring only authorized users can utilize the charging station.
Full-featured Home EV Charger
With its IP55-rated housing, our charger offers excellent protection against dust and water ingress. The IK10 rating ensures high impact resistance, ensuring durability and longevity. Experience smart control with real-time monitoring and remote functionalities through the app. Stay updated on the charging status, manage charging sessions, and have full control over your charging station, all at your fingertips.
IP55 and IK10 Housing: Designed with a durable IP55-rated housing, providing excellent protection against dust and water ingress. The IK10 rating ensures high impact resistance.
App Control: Take control of the charging process through a dedicated mobile app, allowing for current adjustment, schedule charging, charging reports, and cost-saving features.
Smart Control: Seamlessly manage and monitor the charging station via the app, providing real-time status updates and remote control functionalities.
Emergency Button: Equipped with an emergency button for immediate shutdown or interruption of the charging process in case of emergencies or safety concerns.
WiFi Connectivity: Connect the charging station to a WiFi network for convenient access to online features, remote monitoring, and firmware updates.
RFID Function: Enable secure access control through the integrated RFID function, ensuring only authorized users can utilize the charging station.
Product | Advanced Charging Station | |
Supplier Code | ECO-EVS-D | |
Rated Power | 3.7kW/7kW/11kW/22kW | |
Frequency | 50Hz/60Hz | |
Operation Voltage | 230VAC ±10% 400VAC ±10% | |
Insulation Resistance | >1000mΩ(DC500V) | |
Terminal Temperature Rise | <50K | |
Withstand Voltage | 2000V | |
Contact Resistance | 0.5mΩ Max | |
Mechanical Life | no-load plug in/out >10000 times | |
Impact of External | can afford 1M drop and 2T vehicle run over press | |
Operating Temperature | -30 ̊C to +50 ̊C | |
Applied Materials | Thermoplastic, flame retardant grade UL94 V-0 | |
Copper Alloy, Silver Plating | ||
Working Altitude | <2000M | |
Display | 4.3 Inch LCD touchable | |
Current Adjustable | Yes | |
Delay Charging | Yes | |
Delay Stop | Yes | |
Dynamic Load Balance | Yes | |
RCD | Type A or Type B(30mA AC+6mA DC) | |
Network Gateway | Wifi | |
Communication Protocol | Modbus-rtu | |
Housing Material | PCV0 | |
Protection Level | IP65 | |
Charging Outlet | 5M Type 1 or 5M Type 2 | Type 2 Socket with Magnetic lock |
Charging Method | RFID | |
Size | 400*304*125mm | |
Safety Standard | IEC 61851-2017 | |
Warranty | 1 Years | |
Product | Advanced Charging Station | |
Supplier Code | ECO-EVS-D | |
Rated Power | 3.7kW/7kW/11kW/22kW | |
Frequency | 50Hz/60Hz | |
Operation Voltage | 230VAC ±10% 400VAC ±10% | |
Insulation Resistance | >1000mΩ(DC500V) | |
Terminal Temperature Rise | <50K | |
Withstand Voltage | 2000V | |
Contact Resistance | 0.5mΩ Max | |
Mechanical Life | no-load plug in/out >10000 times | |
Impact of External | can afford 1M drop and 2T vehicle run over press | |
Operating Temperature | -30 ̊C to +50 ̊C | |
Applied Materials | Thermoplastic, flame retardant grade UL94 V-0 | |
Copper Alloy, Silver Plating | ||
Working Altitude | <2000M | |
Display | 4.3 Inch LCD touchable | |
Current Adjustable | Yes | |
Delay Charging | Yes | |
Delay Stop | Yes | |
Dynamic Load Balance | Yes | |
RCD | Type A or Type B(30mA AC+6mA DC) | |
Network Gateway | Wifi | |
Communication Protocol | Modbus-rtu | |
Housing Material | PCV0 | |
Protection Level | IP65 | |
Charging Outlet | 5M Type 1 or 5M Type 2 | Type 2 Socket with Magnetic lock |
Charging Method | RFID | |
Size | 400*304*125mm | |
Safety Standard | IEC 61851-2017 | |
Warranty | 1 Years | |
