Electric Vehicle Stations

  • EVS-DS7

  • Creaxio

  • Type 2

  • 1 Phase

  • 32A

  • 7kW

  • 4.3Inch

  • 6A/8A/10A/13A/16A

  • 0~15h

  • yes

  • Black

  • IP55

  • Polycarbonate

  • CE

  • 12 Months

Availability:

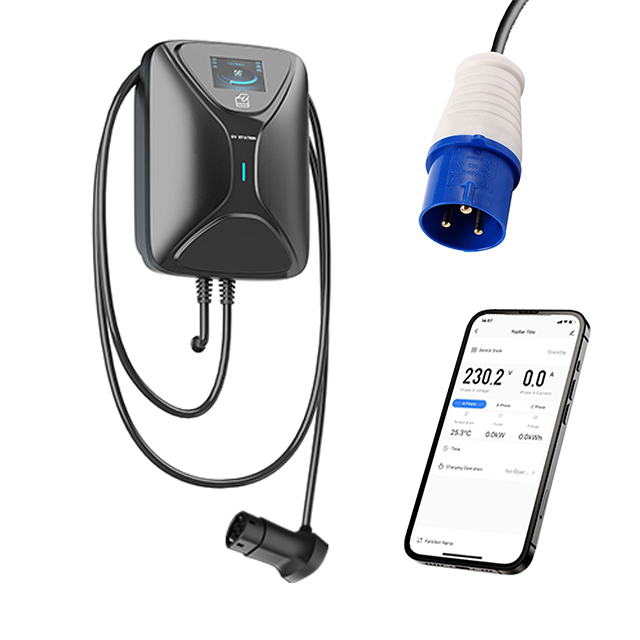

AC Electric Vehicles Charging Station


With features like Enhanced Power Options, Dynamic Load Balancing, Track Charging, Type 2/Type 1 Plug Availability, Type 2 Socket Availability, and Plug and Play Installation, our Electric Stations provide a reliable and user-friendly charging experience for electric vehicle owners. Charge your vehicle with ease and confidence, knowing that our stations are designed to meet your charging needs.


Enhanced Power Options: Electric vehicle home charging station supports charging power options ranging from 3.7 kW to 22 kW, accommodating various electric vehicle charging needs.

Dynamic Load Balancing: Optimize energy distribution by dynamically balancing the load between multiple charging stations, preventing overloading and maximizing efficiency.

Track Charging: Monitor and track charging sessions, including energy consumption and charging duration, for efficient tracking and analysis.

Type 2/Type 1 Plug Availability: Choose between car charging plugs Type 2 or Type 1 plugs to ensure compatibility with different electric vehicle charging standards.

Type 2 Socket Availability: Access a car charging plugsType 2 socket option for charging electric vehicles with Type 2 connectors.

Plug and Play Installation: Enjoy easily installing EV charger and hassle-free installation with a plug and play design that requires minimal setup.




Product

Advanced Charging Station

Supplier Code

ECO-EVS-D

Rated Power

3.7kW/7kW/11kW/22kW

Frequency

50Hz/60Hz

Operation Voltage

230VAC ±10% 400VAC ±10%

Insulation Resistance

>1000mΩ(DC500V)

Terminal Temperature Rise

<50K

Withstand Voltage

2000V

Contact Resistance

0.5mΩ Max

Mechanical Life

no-load plug in/out >10000 times

Impact of External

can afford 1M drop and 2T vehicle run over press

Operating Temperature

-30 ̊C to +50 ̊C

Applied Materials

Thermoplastic, flame retardant grade UL94 V-0


Copper Alloy, Silver Plating

Working Altitude

<2000M

Display

4.3 Inch LCD touchable

Current Adjustable

Yes

Delay Charging

Yes

Delay Stop

Yes

Dynamic Load Balance

Yes

RCD

Type A or Type B(30mA AC+6mA DC)

Network Gateway

Wifi

Communication Protocol

Modbus-rtu

Housing Material

PCV0

Protection Level

IP65

Charging Outlet

5M Type 1 or 5M Type 2

Type 2 Socket with Magnetic lock

Charging Method

RFID

Size

400*304*125mm

Safety Standard

IEC 61851-2017

Warranty

1 Years
