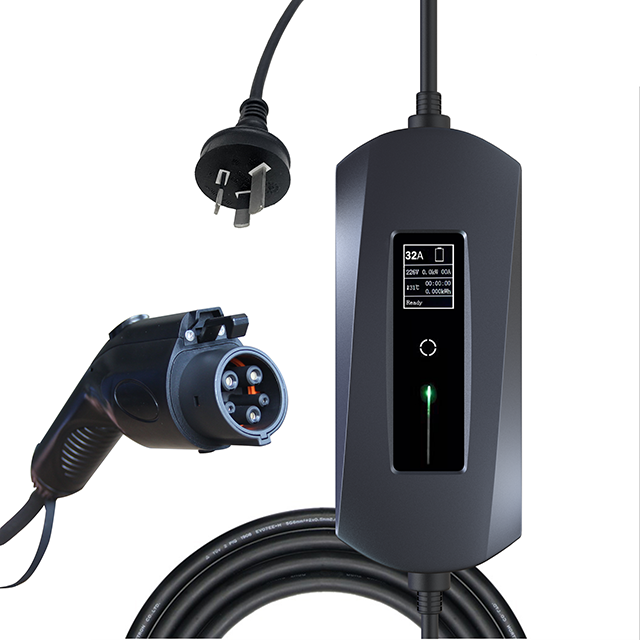

High-Power EV Charger

  • Creaxio

  • PC001-32A1P

  • Type 1

  • 1 Phase

  • 32A

  • 7.4kW

  • 5M or customized

  • 1.8Inch

  • 6A/8A/10A/13A/16A

  • 0~15h

  • Black

  • IP65

  • Polycarbonate

  • CE

  • 12 Months

Availability:


Rapid charging for time-conscious electric vehicle owners


The High-Power Charging Performance solution is designed for electric vehicle owners who value speed and efficiency. With its high-power charging capabilities, it delivers rapid charging performance, significantly reducing charging time. Get back on the road quickly and efficiently with this charger, catering to the needs of time-conscious electric vehicle owners.


Multi-Mode Charging: EV car charger supports multiple charging modes, including fast charging and timed charging, allowing you to choose the most suitable mode for your charging needs.

High-Power Output: With its 11kW high-power output, EVSE charger provides rapid charging for your electric vehicle, minimizing charging times and maximizing convenience.

Adjustable Charging Cable Length: EV fast charger comes with an adjustable charging cable length, providing flexibility to reach charging ports that are further away or closer to your EV, 5meter or customized.

LCD Display with Touch Controls: The 1.8inch LCD display on car battery charger offers an user-friendly interface to monitor and control the charging process with ease.

Energy Consumption Tracking: Auto battery charger includes energy consumption tracking, allowing you to monitor and analyze your charging patterns for optimal efficiency and cost savings.

Intelligent Fault Detection: Equipped with intelligent fault detection, electric car charger identifies and alerts you to any potential charging issues, ensuring a safe and reliable charging experience.


Product

Mode 2 Portable Charger

Supplier Code

PC001-1601

PC001-3201

PC001-1603

Rated Power

16A Single Phase

32A Single Phase

16A Three Phase

Current Adjustable

6A/8A/10A/13A/16A

10A/16A/20A/24A/32A

6A/8A/10A/13A/16A

Delay Charging

From 0hour to 15hours

Frequency

50Hz/60Hz

Operation Voltage

230VAC ±10% / 400VAC ±10%

Insulation Resistance

>1000mΩ(DC500V)

Terminal Temperature Rise

<50K

Withstand Voltage

2000V

Contact Resistance

0.5mΩ Max

Mechanical Life

no-load plug in/out >10000 times

Coupled Insertion Force

45N<F<100N

Impact of External

can afford 1M drop and 2T vehicle run over press

Operating Temperature

-30 ̊C to +50 ̊C

Working Altitude

<2000M

RCD

30mA AC or Optional(30mA AC+6mA DC)

Housing Material

PC+GF

Front Panel

PC

Protection Level

IP65

Charging Outlet

Type 1 or Type 2

Type 1 or Type 2

Type 2

Charging Method

Plug and In/Delay charging

Size

255*109*55mm

Application Site

Indoor/Outdoor

Safety Standard

IEC62752/IEC62196

Warranty

1 Years
