Outdoor EV Station

  • EVS-S11

  • Creaxio

  • Type 2

  • 3 Phase

  • 16A

  • 11kW

  • 6A/8A/10A/13A/16A

  • 0~15h

  • yes

  • Black

  • IP55

  • Polycarbonate

  • CE

  • 12 Months

Availability:

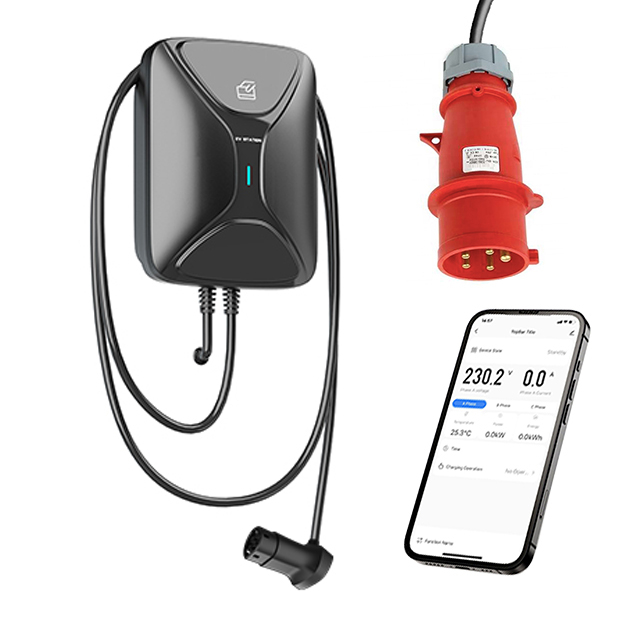

EV Charging Station 11kW With Type 2 Socket


Wallbox is a high-power charging solution designed for rapid charging requirements. Car charger for electric car delivers maximum power output and fast charging capabilities, significantly reducing charging time. It incorporates advanced power management, dynamic load balancing, and demand response capabilities for efficient energy distribution. vehicle charging point's durable construction and intelligent user interface make it a reliable choice for high-demand charging environments. Experience maximum power and speed with commercial charging station for rapid and efficient charging.


High Charging Power: 22kW electric car chargers offer high charging power, allowing for faster charging speeds and reduced charging times.

Smart Control by App: Take advantage of smart control features with level 2 EV charging station, including adjustable charging current, scheduled charging, charging reports, and cost-saving calculations.

WiFi Connection: 11kW charger provides reliable WiFi connectivity, enabling seamless remote monitoring and control of charging sessions.

US and EU Standards Compliant: The EVSE charger adheres to regional charging norms for seamless operation.

RFID Function: Ensure secure charging with the RFID function of electric car port, allowing for authorized access and preventing unauthorized usage.

Option for Socket or Tethered Version: High power charging station offers the option to choose between a socket or tethered version, providing flexibility to suit different charging needs.



Product

Home&Public Charging Station

Supplier Code

EVS

Rated Power

3.7kW/7kW/11kW/22kW

Frequency

50Hz/60Hz

Operation Voltage

230VAC ±10% 400VAC ±10%

Insulation Resistance

>1000mΩ(DC500V)

Terminal Temperature Rise

<50K

Withstand Voltage

2000V

Contact Resistance

0.5mΩ Max

Mechanical Life

no-load plug in/out >10000 times

Coupled Insertion Force

45N<F<100N

Impact of External

can afford 1M drop and 2T vehicle run over press

Operating Temperature

-30 ̊C to +50 ̊C

Applied Materials

Thermoplastic, flame retardant grade UL94 V-0

Copper Alloy, Silver Plating

Working Altitude

<2000M

RCD

Type A or Type B

Communication Protocol

Aavailable Mudbus

Housing Material

PCV0

Front Panel

PC

Protection Level

IP65

Charging Outlet

5M Type 1 or 5M Type 2

Type 2 Socket with Magnetic lock

Charging Method

RFID

Size

400*304*125mm

Application Site

Indoor/Outdoor

Safety Standard

IEC 61851-2017

Warranty

2 Years
