CC-20-221603
Creaxio
Type 2
3 Phase
16A
11kW
5M or customized
Black
IP55
Polycarbonate
CE
12 Months
| Availability: | |
|---|---|

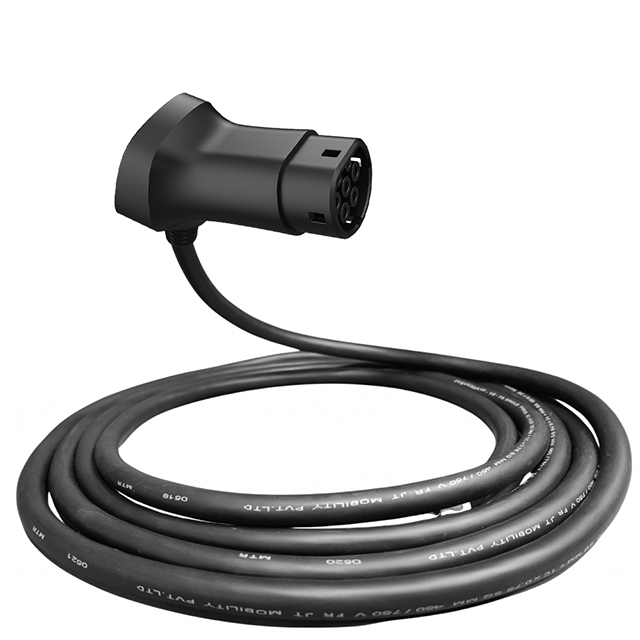

3Phase Type 2 to Type 2 IEC62196 EV Charging Cable
EV cable takes EV charging to the next level with its powerful performance and advanced features. With its maximum 22kW charging power, wide compatibility, and exceptional durability, it ensures a superior charging experience every time.
Ultra-Fast Charging: EV station cable supports lightning-fast charging, providing quick and efficient charging times for your electric vehicle.
Ergonomic Grip: Designed with an ergonomic grip, vehicle charging cable ensures a comfortable and secure hold during the charging process.
Self-Cleaning Technology: EV battery plug incorporates self-cleaning technology, ensuring optimal contact and conductivity for consistent charging performance.
Wide Compatibility: Type 2 cable is compatible with a wide range of electric vehicle models, offering seamless charging for different brands.
TUV Certified: EVSE Charging Cable is certified by TUV, meeting rigorous safety and quality standards, providing peace of mind for users.
IP55 Rated Excellent Protection: Battery charging cable has an IP55 rating, providing excellent protection against dust, water, and external elements, making it suitable for outdoor charging.
3Phase Type 2 to Type 2 IEC62196 EV Charging Cable
EV cable takes EV charging to the next level with its powerful performance and advanced features. With its maximum 22kW charging power, wide compatibility, and exceptional durability, it ensures a superior charging experience every time.
Ultra-Fast Charging: EV station cable supports lightning-fast charging, providing quick and efficient charging times for your electric vehicle.
Ergonomic Grip: Designed with an ergonomic grip, vehicle charging cable ensures a comfortable and secure hold during the charging process.
Self-Cleaning Technology: EV battery plug incorporates self-cleaning technology, ensuring optimal contact and conductivity for consistent charging performance.
Wide Compatibility: Type 2 cable is compatible with a wide range of electric vehicle models, offering seamless charging for different brands.
TUV Certified: EVSE Charging Cable is certified by TUV, meeting rigorous safety and quality standards, providing peace of mind for users.
IP55 Rated Excellent Protection: Battery charging cable has an IP55 rating, providing excellent protection against dust, water, and external elements, making it suitable for outdoor charging.
Technical Specification | |
Product Code | CC-20 |
Insulation Resistance | >1000mΩ(DC500V) |
Terminal Temperature Rise | <50K |
Withstand Voltage | 2000V |
Contact Resistance | 0.5mΩ Max |
Mechanical Life | no-load plug in/out >10000 times |
Coupled Insertion Force | 45N<F<100N |
Impact of External | can afford 1M drop and 2T vehicle run over press |
Operating Temperature | -30 ̊C to +50 ̊C |
Case Material | Thermoplastic, flame retardant grade UL94 V-0 |
Terminal | Copper Alloy, Silver Plating |
Technical Specification | |
Product Code | CC-20 |
Insulation Resistance | >1000mΩ(DC500V) |
Terminal Temperature Rise | <50K |
Withstand Voltage | 2000V |
Contact Resistance | 0.5mΩ Max |
Mechanical Life | no-load plug in/out >10000 times |
Coupled Insertion Force | 45N<F<100N |
Impact of External | can afford 1M drop and 2T vehicle run over press |
Operating Temperature | -30 ̊C to +50 ̊C |
Case Material | Thermoplastic, flame retardant grade UL94 V-0 |
Terminal | Copper Alloy, Silver Plating |
